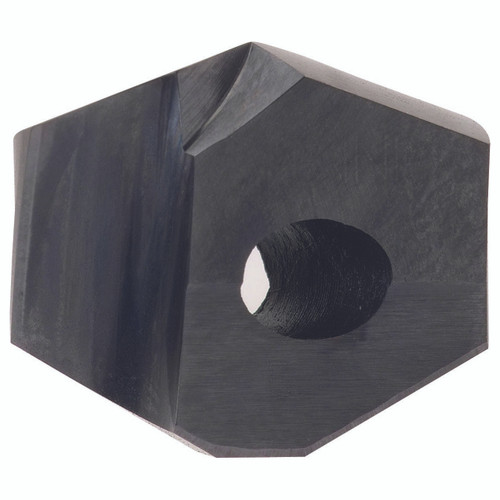

YG1 Y03F04 | 0.8906" Diameter x 0.2362" Thickness x 0.6890" Insert Height TiAIN Coated Carbide Dream Drill Insert

$117.44 $79.86
(You save $37.58)
Brand:
YG1
Material:
Carbide
Length (Decimal Inch):
0.1621"
Length (mm):
4.10mm
Inscribed Circle (Inch):
57/64"
Inscribed Circle (Decimal Inch):
0.8906"
Inscribed Circle (mm):
22.62mm
Thickness (Decimal Inch):
0.2362"
Thickness (mm):
6.00mm
Insert Height (Decimal Inch):
0.6890"
Insert Height (mm):
0.70mm
interval quantity:
1
SKU:
10032051
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 Y03F04 | 0.8906" Diameter x 0.2362" Thickness x 0.6890" Insert Height TiAIN Coated Carbide Dream Drill Insert

Product Specifications
# Manufacturer NumberY03F04
Diameter (Decimal Inch)0.8906"
Diameter (Inch)57/64"
Diameter (mm)22.62mm
Thickness (Decimal Inch)0.2362"
Thickness (Inch)13/55"
Thickness (mm)6.00mm
Insert Height (Decimal Inch)0.6890"
Insert Height (Inch)31/45"
Insert Height (mm)0.70mm
Point Length (Decimal Inch)0.1621"
Point Length (mm)4.10mm
Point Angle (Degree)140 Degree
Holder TypeF
CoatingTiAIN
MaterialCarbide
ApplicationP,K
Product TypeDream Drill Insert
