Product Specifications
| # Manufacturer Number | Z8246 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (mm) | 4.00mm |
| Pitch | 0.7 TPI |
| Size | M4 |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.27mm |
| Overall Length (Decimal Inch) | 2.1300" |
| Overall Length (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.5000" |
| Thread Length (mm) | 12.70mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Drill Size (Decimal Inch) | 0.1453" |
| Drill Size (mm) | 3.69mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | TIN |
| Material | HSSE-V3 |
| Thread Series | M |
| Series | Z8 |

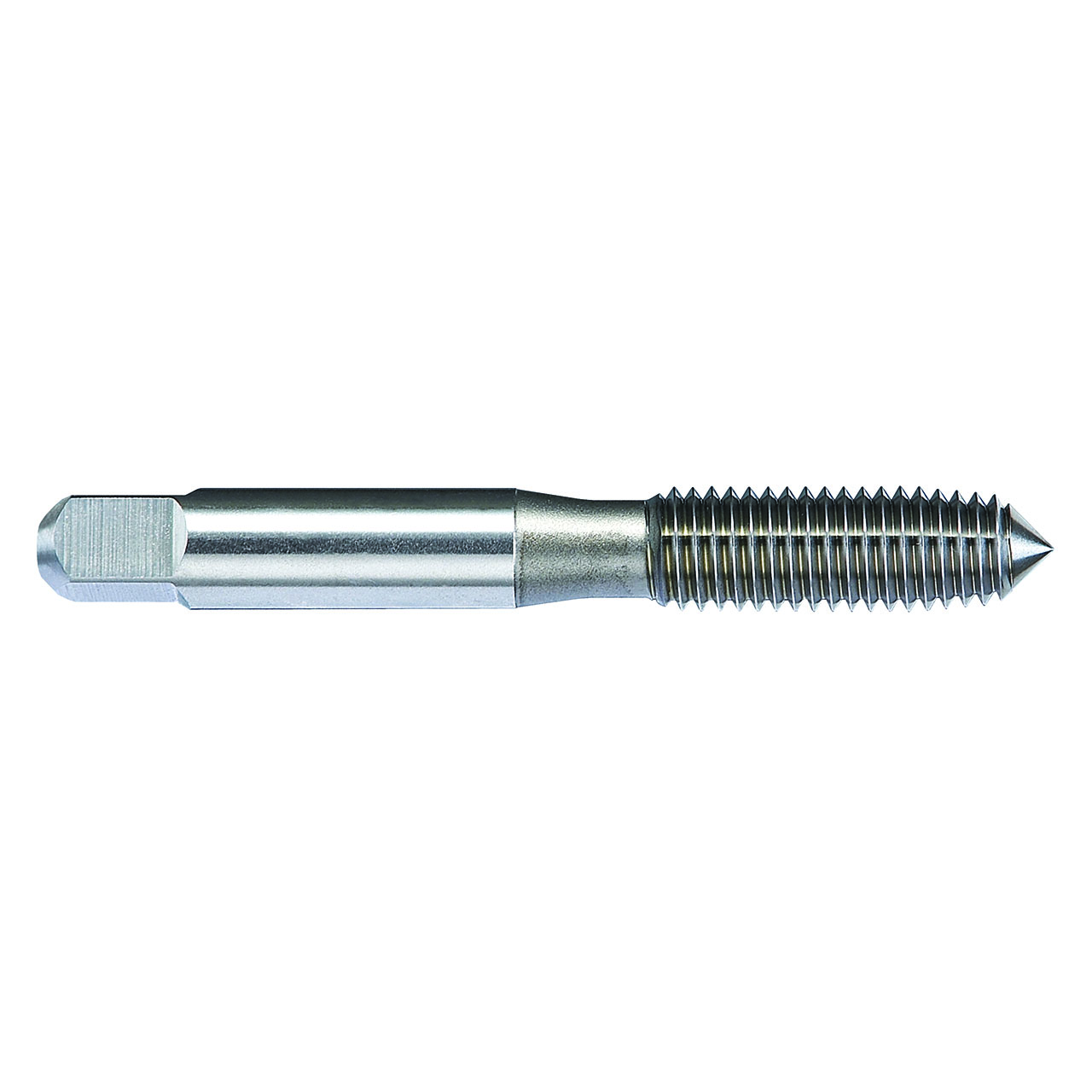

| Product Type | Thread Forming Tap |
