Product Specifications
| # Manufacturer Number | Z8369 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (mm) | 8.00mm |
| Pitch | 1.25 TPI |
| Size | M8 |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Overall Length (Decimal Inch) | 2.7200" |
| Overall Length (mm) | 69.10mm |
| Thread Length (Decimal Inch) | 0.9300" |
| Thread Length (mm) | 23.62mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Drill Size (Decimal Inch) | 0.2932" |
| Drill Size (mm) | 7.45mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | Bright |
| Material | HSSE-V3 |
| Thread Series | M |
| Series | Z8 |

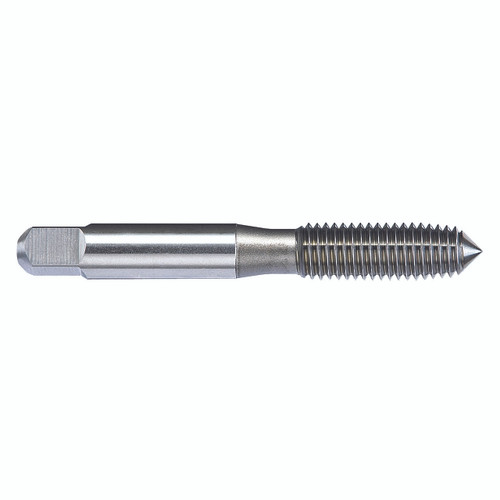

| Product Type | Thread Forming Tap |
