Product Specifications
| # Manufacturer Number | ZA205 |
| Diameter (Decimal Inch) | 0.1181" |
| Diameter (mm) | 3.00mm |
| Pitch | 0.5 TPI |
| Size | M3 |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Overall Length (Decimal Inch) | 1.9400" |
| Overall Length (mm) | 49.30mm |
| Thread Length (Decimal Inch) | 0.6300" |
| Thread Length (mm) | 16.00mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.1094" |
| Drill Size (mm) | 2.78mm |
| Number of Lobes | 4 |
| Number of Grooves | 1 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | Bright |
| Material | HSSE-V3 |
| Thread Series | M |
| Series | ZA |

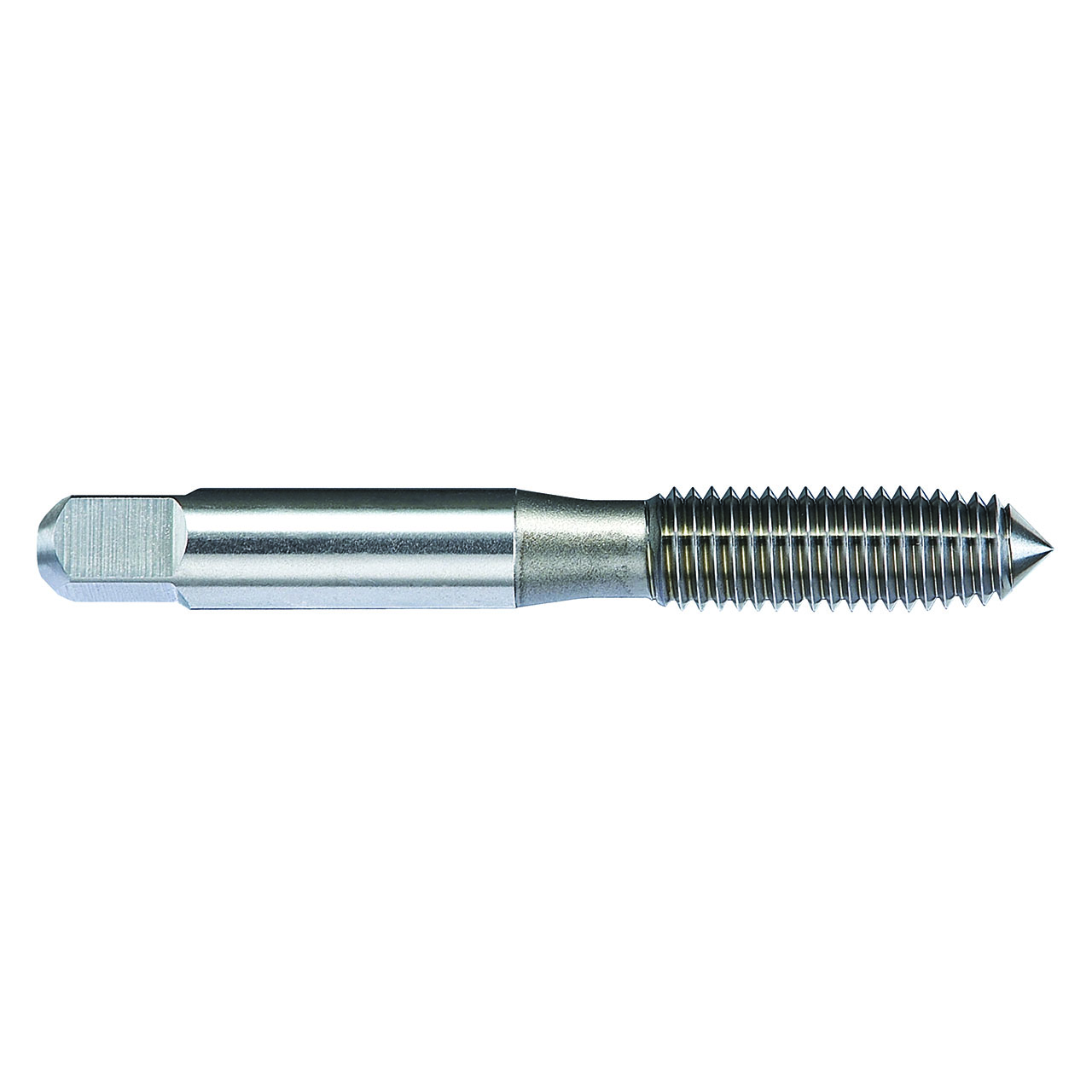

| Product Type | Thread Forming Tap |
