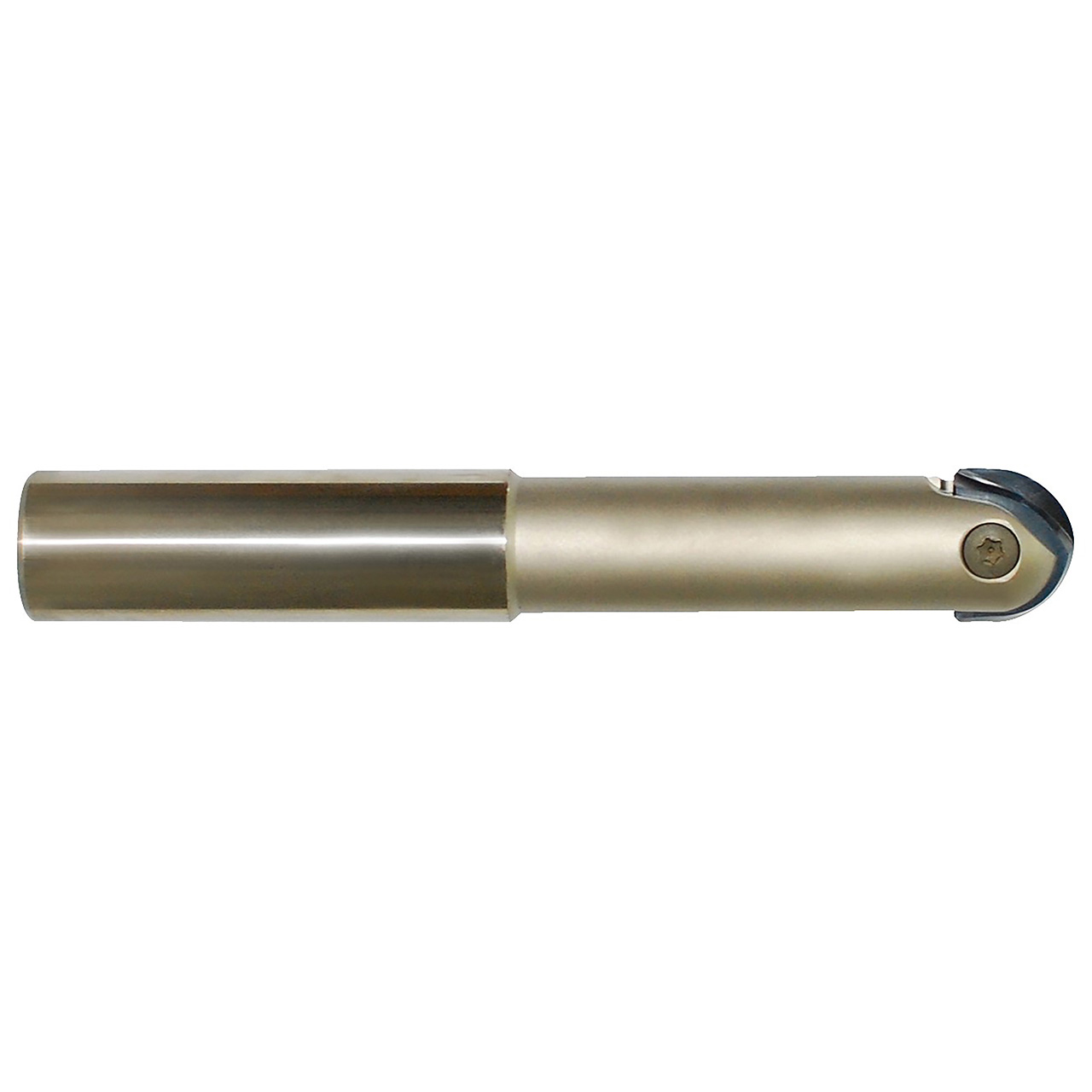

Product Specifications
| Manufacturer Part Number | ZBS2001 |
| Diameter (Inch) | 37/47" |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Inch) | 1-23/40" |
| Length of Cut (Decimal Inch) | 1.5748" |
| Length of Cut (mm) | 40.00mm |
| LBS (Inch) | 54-0/16" |
| LBS (Decimal Inch) | 1.5748" |
| LBS (mm) | 40.00mm |
| Overall Length (Inch) | 4-1/3" |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (mm) | 110.00mm |
| Neck Diameter (Inch) | 17/24" |
| Neck Diameter (Decimal Inch) | 0.7087" |
| Neck Diameter (mm) | 18.00mm |
| Coating | Nickel-Based |
| Material | Alloy Steel |
| Cutting Direction | Right Hand |
| Product Type | Milling Ball Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Alloy Steel
Finish/Coating:
Nickel-Based
interval quantity:
1
