Product Specifications

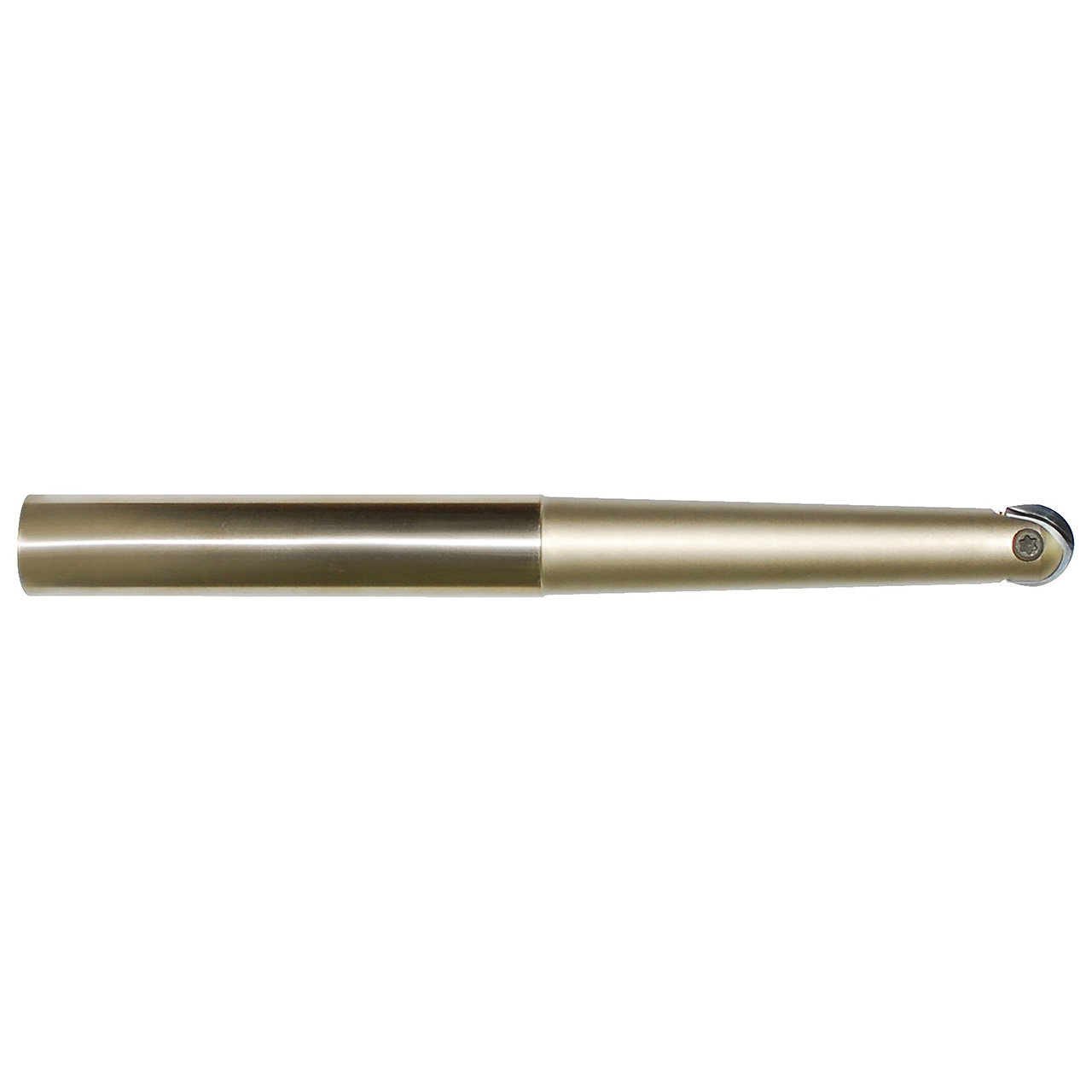

| Manufacturer Part Number | ZBT1040 |
| Diameter (Inch) | 5/8" |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (mm) | 20.64mm |
| LBS (Inch) | 23-8/16" |
| LBS (Decimal Inch) | 2.5625" |
| LBS (mm) | 65.09mm |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (mm) | 127.00mm |
| Neck Diameter (Inch) | 9/16" |
| Neck Diameter (Decimal Inch) | 0.5625" |
| Neck Diameter (mm) | 14.29mm |
| Coating | Nickel-Based |
| Material | Alloy Steel |
| Cutting Direction | Right Hand |
| Product Type | Milling Ball Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Alloy Steel
Finish/Coating:
Nickel-Based
