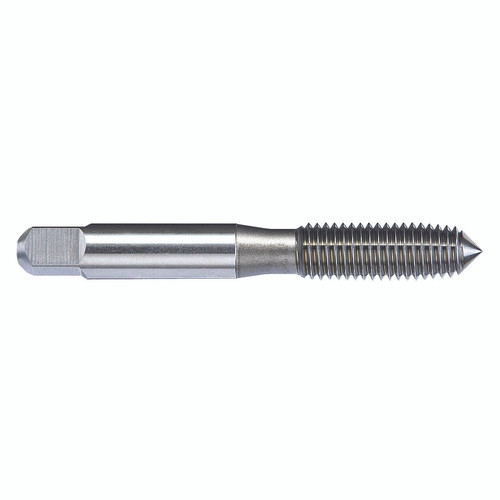

YG1 ZD133 | M2x0.40mm Size x 3.58mm Shank x 10.16mm Thread Length x 44.45mm OAL M 4 Flute TIN Coated HSSE ZD Thread Forming Tap

$33.50 $23.79
(You save $9.71)
Brand:
YG1
Thread Size (Decimal Inch):
0.0787"
Thread Size (mm):
2.00mm
Pitch (mm):
0.40mm
Thread Limit:
D3
Number of Flutes:
4
Chamfer:
Bottoming
Finish/Coating:
TIN
Material:
HSSE
Thread Standard:
302A
interval quantity:
1
SKU:
15013950
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 ZD133 | M2x0.40mm Size x 3.58mm Shank x 10.16mm Thread Length x 44.45mm OAL M 4 Flute TIN Coated HSSE ZD Thread Forming Tap

Product Specifications
Manufacturer Part NumberZD133
Diameter (Decimal Inch)0.0787"
Diameter (mm)2.00mm
Pitch.4 TPI
SizeM2
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)3.58mm
Overall Length (Decimal Inch)1.7500"
Overall Length (mm)44.50mm
Thread Length (Decimal Inch)0.4000"
Thread Length (mm)10.16mm
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.83mm
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Drill Size (Decimal Inch)0.0718"
Drill Size (mm)1.82mm
Number of Lobes4
Number of Grooves1
Length Diameter3.0 x D
Shank TypeSquare
CoatingTIN
MaterialHSSE-V3
Thread SeriesM
SeriesZD
Product TypeThread Forming Tap
