Product Specifications
| EDP Number | H7082 |
| Size | #2 |
| Pitch | 56 TPI |
| Diameter (Decimal Inch) | 0.0860" |
| Diameter (mm) | 2.18mm |
| Overall Length (Decimal Inch) | 1.7500" |
| Overall Length (mm) | 44.45mm |
| Thread Length (Decimal Inch) | 0.1570" |
| Thread Length (mm) | 3.99mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 4.83mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 1.55mm |
| Drill Size (Decimal Inch) | 0.0698" |
| Drill Size (mm) | 1.77mm |
| Useable Length (Decimal Inch) | 0.4330" |
| Useable Length (mm) | 11.00mm |
| Number of Flutes | 3 |
| Series | H7 |
| Chamfer Length | 2P-3P |
| Blank Standard | 302A |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Coating | TiCN |
| Material | P-HSS |
| Helix Angle (Degree) | 15 Degree |
| Length/Diameter | 2.5xD |
| Shank Type | Square |
| Coolant Through | No |
| Trade Name | YG Tap Hard Steel |
| Tap Type | Spiral Flute |
| Chamfer Type | Modified Bottoming |

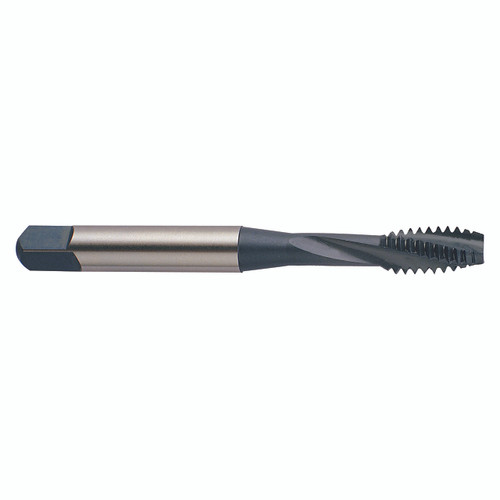

| Product Type | Spiral Flute Modified Bottom Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Limit:
H2
Number of Flutes:
3
Chamfer:
2P-3P
Material:
P-HSS
Finish/Coating:
TiCN
Through Coolant:
No
Threads per Inch (TPI):
56 TPI
