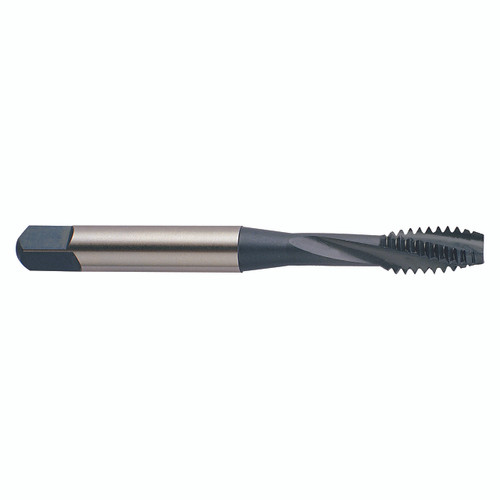

Product Specifications
| EDP Number | M7525 |
| Size | 7/16" |
| Pitch | 14 TPI |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 3.1600" |
| Overall Length (mm) | 80.26mm |
| Thread Length (Decimal Inch) | 0.8660" |
| Thread Length (mm) | 22.00mm |
| Square Length (Decimal Inch) | 0.4100" |
| Square Length (mm) | 10.41mm |
| Shank Diameter (Decimal Inch) | 0.3230" |
| Shank Diameter (mm) | 8.20mm |
| Square Size (Decimal Inch) | 0.2420" |
| Square Size (mm) | 10.41mm |
| Neck Diameter (Decimal Inch) | 0.3110" |
| Neck Diameter (mm) | 7.90mm |
| Drill Size (Decimal Inch) | 0.3726" |
| Drill Size (mm) | 9.46mm |
| Useable Length (Decimal Inch) | 1.4370" |
| Useable Length (mm) | 36.50mm |
| Number of Flutes | 3 |
| Series | M7 |
| Chamfer Length | 4P-5P |
| Blank Standard | 302A |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Coating | Hardslick |
| Material | P-HSS |
| Helix Angle (Degree) | 0 Degree |
| Length/Diameter | 3.0xD |
| Shank Type | Square |
| Coolant Through | No |
| Trade Name | YG Tap Hard Steel |
| Tap Type | Spiral Point |
| Chamfer Type | Plug |
| Product Type | Spiral Point Plug Tap |
