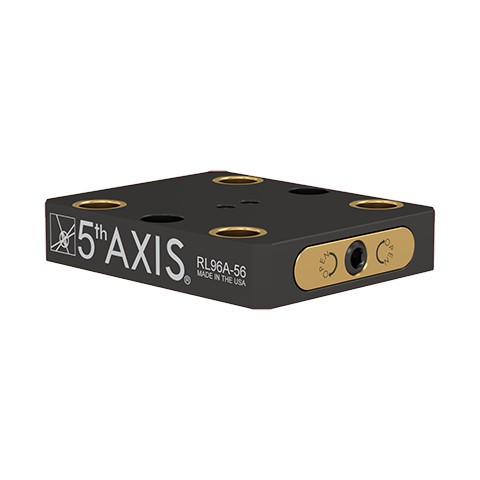

5th Axis RL96A-56 | RockLock 96 mm Low Profile Base - Aluminum - 5" x 6"

Description

The 5th Axis RL96A-56 RockLock 96 mm low-profile base is a precision aluminum tooling platform for low-profile workholding. At 96 mm in diameter and a 5" x 6" style footprint, this RL96A-56 RockLock base minimizes stack height while providing secure mounting. Aluminum construction balances low mass and thermal stability for consistent reference geometry in tooling setups. The RL96A-56 RockLock low-profile workholding base is designed for modular RockLock tooling systems and quick fixture changes. Two M12 mounting holes spaced 180° on a 101.60 mm PCD provide a robust interface for repeatable fixturing and clamping. Its low-profile geometry helps avoid interference with toolpaths and allows closer placement of cutting tools to the part. Toolmakers use the 96 mm RockLock low-profile base to build modular pallets, vises, and zero-point setups for precision jobs. The platform simplifies fixturing for 5-axis and high-speed machining where minimal Z-height is critical to stiffness and accuracy. Compatibility with RockLock accessories enables fast swaps between workholding elements and reduces non-cut time. Anodized aluminum finishes protect the base while preserving tight tolerances on mounting faces and dowel locations. The RL96A-56 workholding platform supports repeatable datum referencing across production batches and setups. Its compact size is advantageous for multi-station pallets where many bases must be placed in proximity. Employ the 5th Axis RL96A-56 to reduce setup complexity and improve part repeatability through consistent datum control. Proper torqueing of mounting fasteners and clean mounting faces will maintain the repeatability of the RockLock base. Overall, the RL96A-56 RockLock 96 mm low-profile base is a versatile, low-height workholding solution for precision CNC setups.

Product Features and Benefits

96 mm RockLock Interface

The RL96A-56 RockLock 96 mm low-profile base provides a standardized datum for RockLock tooling and accessories.

Low-Profile Aluminum Construction

Aluminum material reduces stack height while maintaining dimensional stability for precision setups.

5" x 6" Footprint Compatibility

The 5" x 6" form factor supports compact pallet and fixture designs in multi-station machining environments.

2x M12 Mounting on 101.60 mm PCD

Mounting holes at 180° on a 101.60 mm PCD provide a secure, repeatable interface for fixturing and clamping.

Anodized Finish For Durability

Anodized surfaces protect mounting faces and preserve tolerances for reliable repeatability across batches.

Frequently Asked Questions

What is the nominal size of the RL96A-56 RockLock base?

The RL96A-56 is a 96 mm RockLock low-profile base designed for compact, repeatable workholding platforms.

What material is the RockLock 96 mm base made from?

This RL96A-56 RockLock base is manufactured from aluminum to provide a low profile and thermal stability.

How is the base mounted to pallets or fixtures?

It mounts using two M12 bolts at 180° on a 101.60 mm PCD for a secure and repeatable interface.

Is the base suitable for 5-axis setups?

Yes, the low-profile design is ideal for 5-axis and high-speed machining where minimal Z-height matters.

Can I use RockLock accessories with this base?

Yes, the RL96A-56 is compatible with RockLock tooling and accessories for fast changeovers and modular fixturing.

Technical Files

2D Drawing
