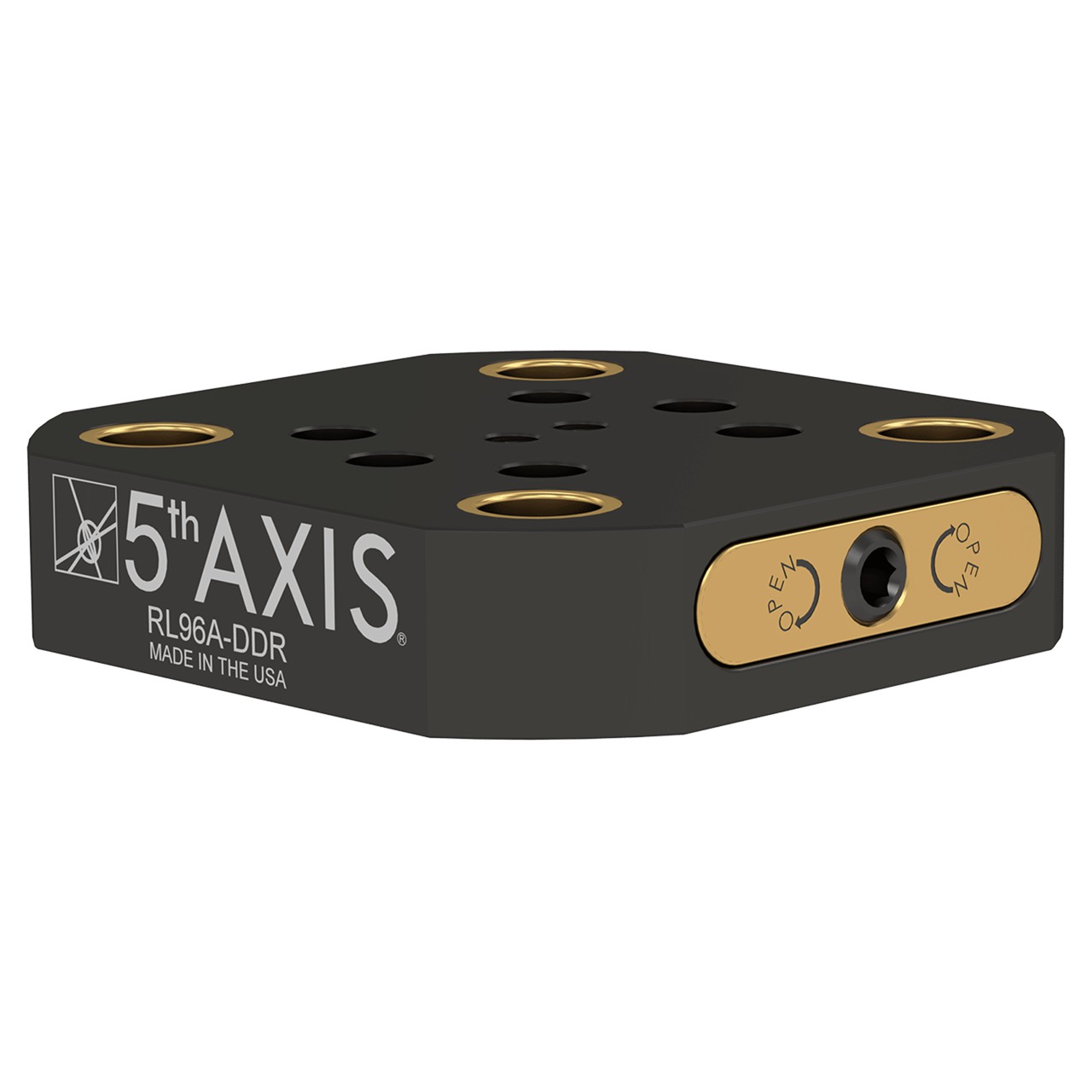

Constructed with aerospace-grade aluminum, the RockLock base embodies the perfect blend of versatility and robust durability. Its industry standard 96mm pull stud spacing ensures a seamless fit intomachining setup, reducing unnecessary bulk while maximizing workspace efficiency. One of the standout features of this system is its adaptability. Inside the RockLock base, youยll find hardened steel internals that are engineered for precision and longevity. The RL96-DDR was built for the Fanuc DDR rotary table. A quick turn of the wrench actuates the cam mechanism to lock and releasefixtures and vises for fast changeover.
Features:
| Manufacturer Part Number | RL96A-DDR |
| Size (mm) | 150.00 x 158.00 x 34.50mm |
| Crate Dimensions (Inch) | 9" x 9" x 3" |
| Mounting | 6X M8 At 45 Degree On 74mm Pcd |
| Material | Aluminum |
| Product Type | Low Profile Base |
A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.
Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003? (8 microns)
Stop building custom adapters and subplates for every new job that comes into the shop.
Job changeover becomes simple and repeatable with the RockLock system, saving you time and money.
Established work offsets help speed up programming time when adjusting for different jobs and top tooling.
Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.
