Features
- Weight: 2.81 lbs

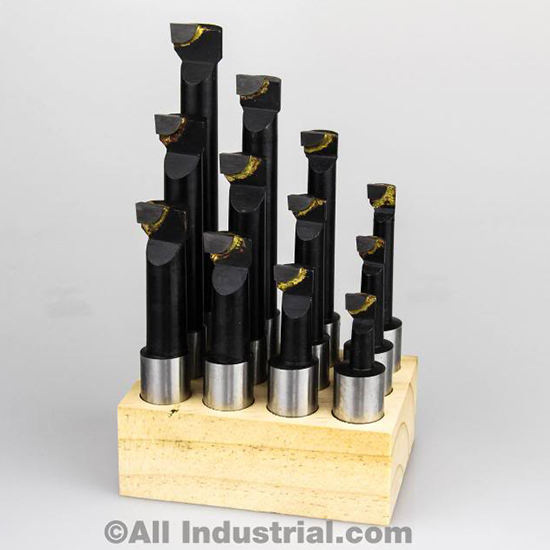

- 12 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals
- All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel
- Shank Diameter- 5/8"
- Minimum Boring Range: 5/16" - 11/16"
- Overall Length: 2-1/4" to 5-1/4"
- Boring Depth Range: 3/4" to 3-3/4"
- Contains (3) pcs. 5/16" minimum bore (1 ea. 3/4" bore depth x 2-1/4" overall, 1 ea. 1-1/8" x 2-5/8", & 1 ea. 1-1/2" x 3")
- Contains (3) pcs. 7/16" minimum bore (1 ea. 1-1/8" bore depth x 2-5/8" overall, 1 ea. 1-11/16" x 3-3/16", & 1 ea. 2-1/4" x 3-3/4")
- Contains (3) pcs. 9/16" minimum bore (1 ea. 1-1/2" bore depth x 3" overall, 1 ea. 2-1/4" x 3-3/4", & 1 ea. 3" x 4-1/2")
- Contains (3) pcs. 11/16" minimum bore (1 ea. 1-7/8" bore depth x 3-3/8" overall, 1 ea. 2-13/16" x 4-5/16", & 1 ea. 3-3/4" x 5-1/4")
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
All Industrial
Shank Diameter (Inch):
5/8"
Minimum Bore Diameter - Small Bar (Inch):
5/16"
Maximum Bore Depth - Small Bar (Inch):
3-1/4"
Minimum Overall Length (Inch):
2-1/4"
Maximum Overall Length (Inch):
5-1/4"
Material:
Carbide
Ships:
Same Business Day if Ordered by 12:30PM PT
IsDiscontinued:
