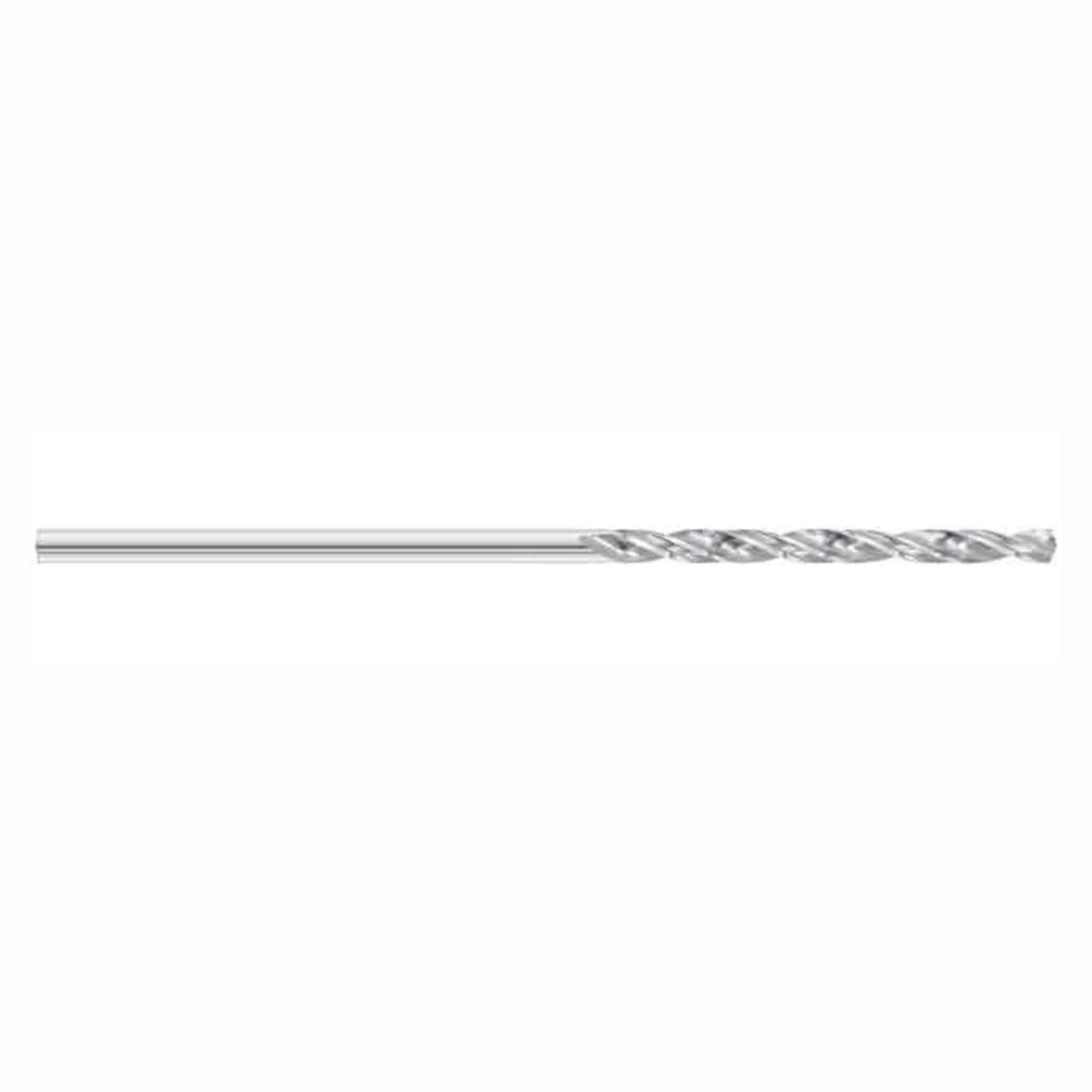

Description
| # Manufacturer Number | AED-1935-6 |
| Cutting Diameter (Inch) | 0.1935" |
| Cutting Diameter (mm) | 4.91mm |
| Flute Length (Inch) | 2.4375" |
| Flute Length (mm) | 61.91mm |
| Flute Length (Fractional Inch) | 2-7/16" |
| Overall Length (mm) | 152.40mm |
| Overall Length (Fractional Inch) | 6" |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Series | 8466 |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Aircraft Extension Drill | Aircraft Extension Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carbro
Drill Bit Size (Decimal Inch):
0.1935"
Drill Bit Size (mm):
4.91mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
2-7/16"
Flute Length (Decimal Inch):
2.4375"
Flute Length (mm):
61.91mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Coolant Through:
No
interval quantity:
1
