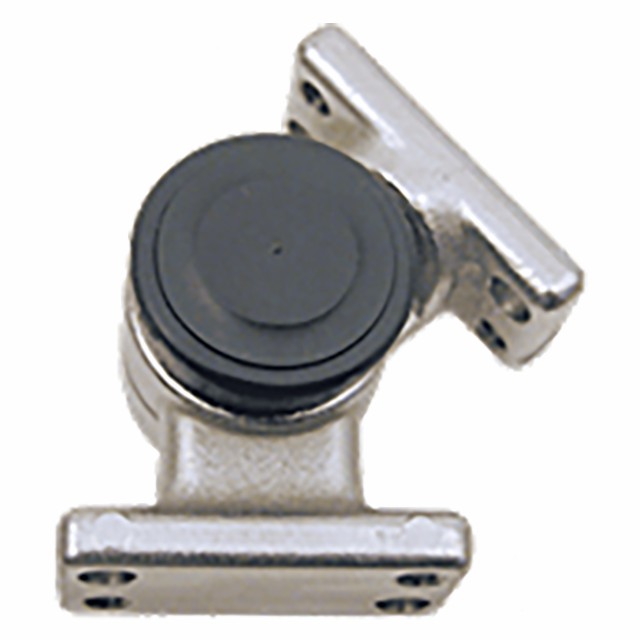

Carr Lane CL-120-ALH-S | Adjustable Locking Hub

Description

The Carr Lane CL-120-ALH-S Adjustable Locking Hub is a precision fixture component made for reliable positioning in demanding industrial setups. Built as a stainless steel locking hub, it delivers strength, corrosion resistance, and dependable performance in repeated use environments. The CL-120 adjustable locking hub provides controlled movement with a total adjustment range of 180 degrees, making it suitable for adaptable fixture configurations. Its 10 degree increment design helps operators set positions accurately while maintaining repeatable alignment. This industrial indexing hub for fixture applications is made to support stable locking action under torque-sensitive conditions. With an allowable torque rating of 80 ft-lbs, it offers strong holding capability for fixture assemblies that require firm resistance. The dual flange locking hub style supports secure integration into adjustable tooling systems. Its electropolished 300-series stainless steel body improves surface quality and durability in industrial environments. The 416 stainless steel pins are heat treated for added strength and long service life. A black thermoplastic release button provides practical operation and controlled unlocking. The Carr Lane locking hub tool for adjustable fixture applications is well suited for machining, assembly, and positioning tasks. It helps simplify setup changes while preserving accuracy across production cycles. The design supports safe, repeatable adjustment in fixtures where precision matters. Its compact, rugged construction makes it a dependable choice for advanced workholding systems. The Carr Lane CL-120-ALH-S combines adjustability, durability, and secure locking performance in one industrial component.

Product Features and Benefits

180-Degree Adjustment Range

The Carr Lane CL-120-ALH-S Adjustable Locking Hub supports broad positional control for flexible fixture alignment.

10 Degree Increment Positioning

The CL-120 adjustable locking hub allows precise step adjustments for repeatable setup settings.

80 ft-lbs Torque Resistance

This 80 ft-lbs torque-resistant locking hub design provides dependable holding strength in fixture applications.

Stainless Steel Construction

The stainless steel locking hub body and pins offer corrosion resistance and durable industrial performance.

Electropolished Dual Flange Design

The dual flange locking hub is made to improve surface finish and supports stable integration in adjustable tooling systems.

Inline Version

The inline version shown here has hub extensions that line up in the same plane. Total range of movement is 220 Degree (not full rotation).

Mounting

The version shown here has mounting flanges that provide two options for mounting: 1) two 1/4-20 tapped holes allow fastening an object to the mounting flange; 2) two 9/32"-dia clearance holes for 1/4" or M6 screws allow fastening the mounting flange to a surface.

Safety Precautions

Avoid any possible pinch points, especially with heavy loads. Do not release the hub unless adequate support for the load is in place. Do not let loads swing freely. When using offset hubs that can rotate 360 Degree, always ensure that loads are balanced in the rotational axis.

Material

Parts Specification

Frequently Asked Questions

What is the Carr Lane CL-120-ALH-S used for?

The Carr Lane CL-120-ALH-S is used for adjustable fixture positioning and secure locking in industrial applications.

How much adjustment does the CL-120 adjustable locking hub provide?

This hub offers a total adjustment range of 180 degrees with 10 degree increments.

What is the torque rating of this locking hub?

The 80 ft-lbs torque-resistant locking hubs specification defines its allowable torque capacity.

What material is used in the hub body?

The stainless steel locking hub body is made from 300-series stainless with an electropolished finish.

Is this hub suitable for fixture indexing applications?

Yes, this industrial indexing hub for fixture applications is designed for accurate and repeatable positional control.
