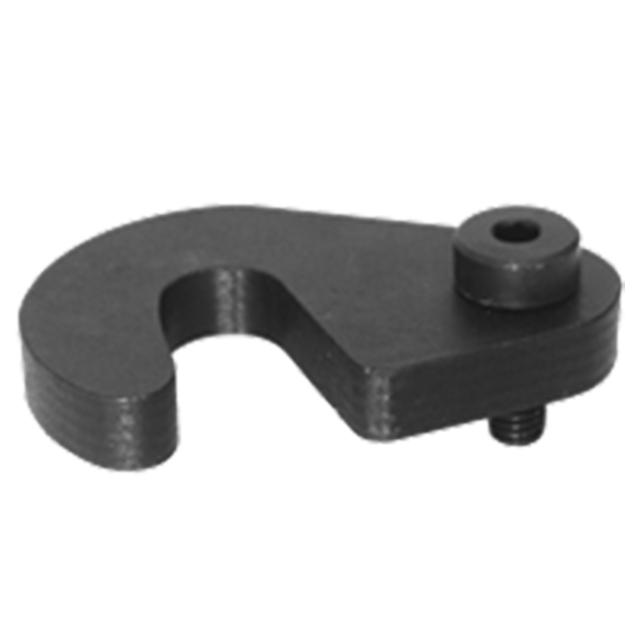

Swing C Washers
Permanently attached C washer that swings out of the way for clear loading. Can be reversed to swing into position either clockwise or counterclockwise.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Washer | 1018 Steel | Carburized-hardened | Black Oxide | Yes | Yes |
| Shoulder Screw | Alloy Steel | Heat Treated Rx 32-43 | Black Oxide | Yes | Yes |
Parts Specification
| Stud Size (Inch) | A (Inch) | B (Inch) | C (Inch) | D (Inch) | E Diameter (Inch) | G Diameter (Inch) | H Thread (Inch) |
| 5/8" | 1-1/8" | 9/16" | 1-1/2" | 3/8" | 21/32" | 1/2" | 3/8-16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
