Carr Lane CL-45-SFC | 1/2-13" Screw Size Serrated Fixed Edge Clamp

Serrated Fixed Edge Clamps

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The fixed version shown here can be used on some modular fixtures, but is usually best for permanent fixtures because it mounts in a fixed position rather than having a slot for adjustment. This allows the clamp to be more compact, and ensures correct position without adjustment. Made in USA.The Serrated Adjustable Edge Clamps are for Standard System MF40 (1/2-13 mounting screws).

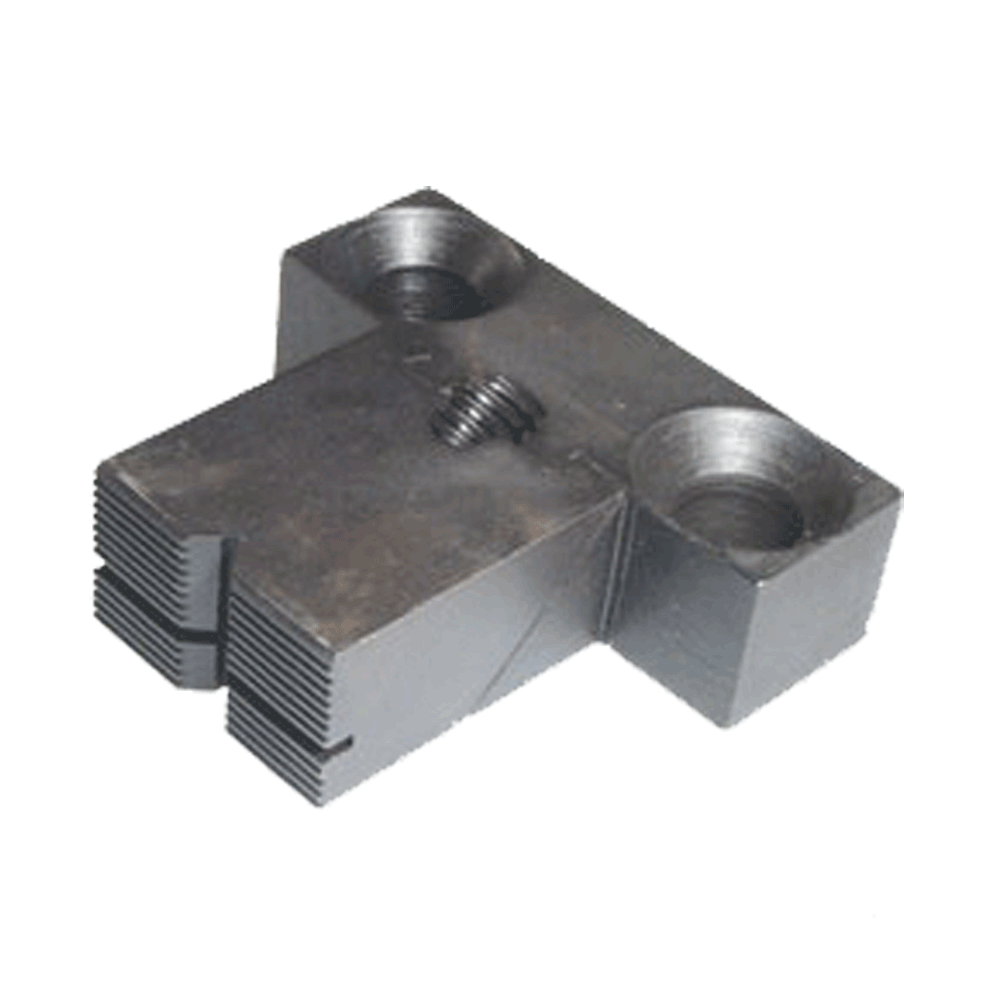

High-Nose Version

The high-nose version shown here is best for most applications-gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.

Material

Parts Specification
