Carr Lane CL-95-SAC | 5/8-11" Screw Size Serrated Adjustable Edge Clamp

$162.70
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50017519
UPC:
Weight:
3.70 LBS
Shipping:
Free Shipping

Serrated Adjustable Edge Clamp-Heavy

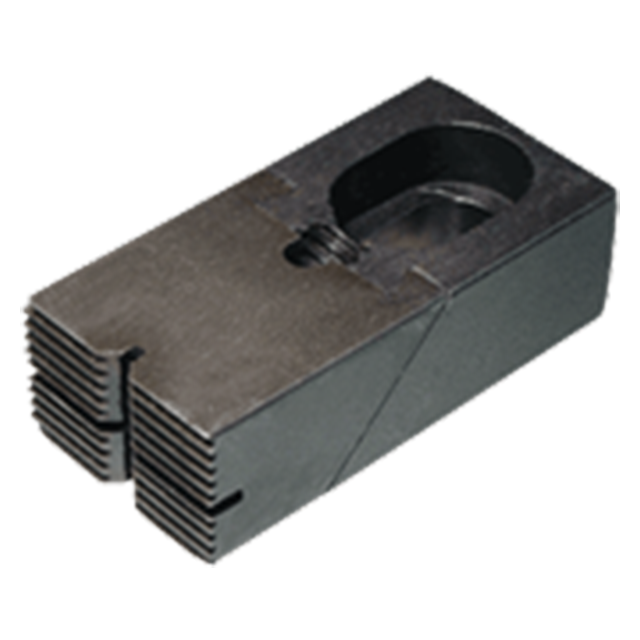

These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding jaw with a hex wrench. Choice of high-nose or low-nose clamping jaw. V-groove in nose is useful for clamping round parts or corners.The adjustable (slotted) edge clamps shown here are useful for mounting directly on a machine table. The slot is tapered to prevent the clamp from backing off under heavy forces (use two mounting screws on longer clamps).

Application Information

High-Nose Version

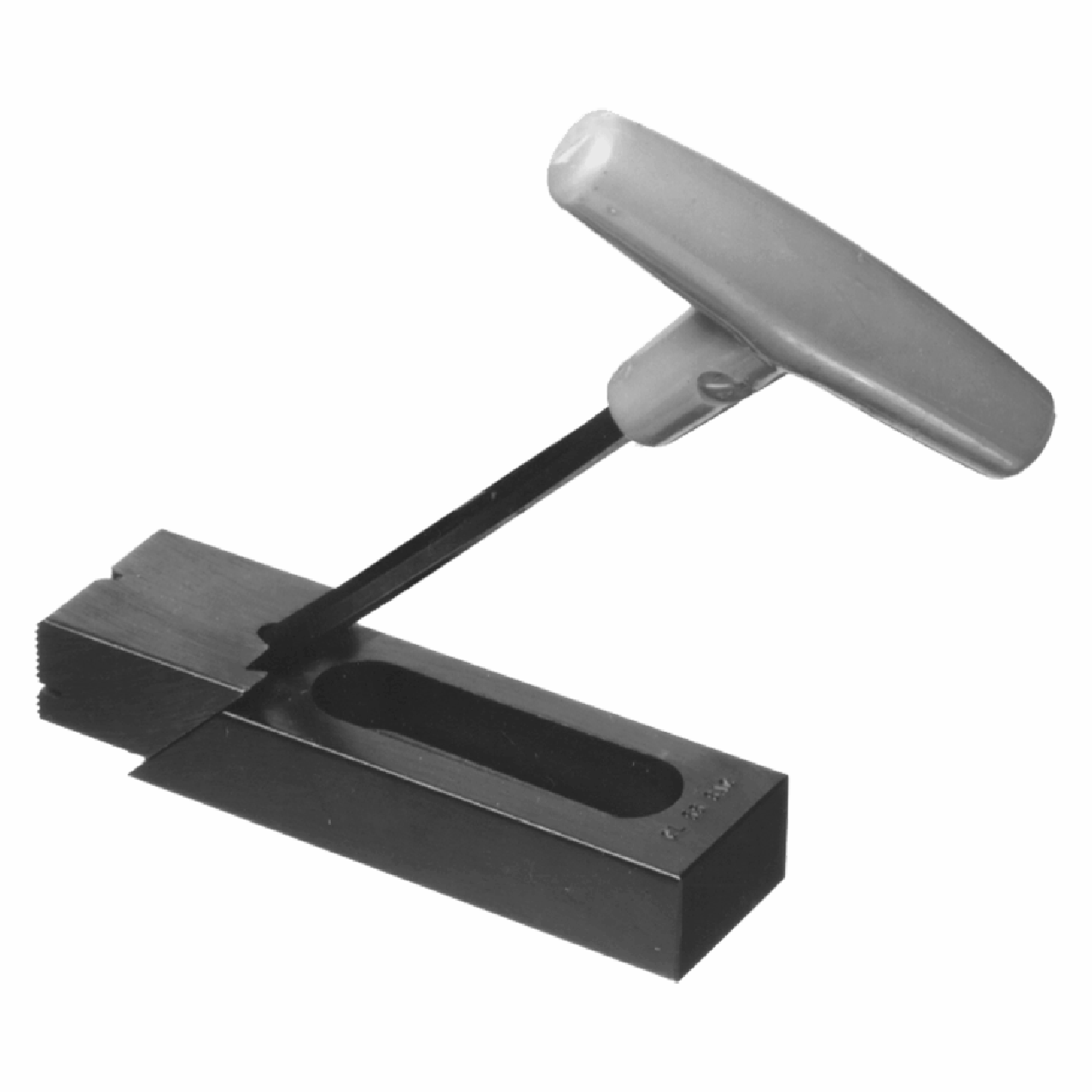

The high-nose version shown here is best for most applications-gripping high on the workpiece, close to the machining plane, to provide maximum clamping rigidity. This version includes a removable aluminum nose cover for clamping soft or machined parts without damage.

Material

Item Material Heat Treat Finish DFARS RoHS
Body and Nose 1018 Steel Carburized Hardened Black Oxide Yes Yes
Clamping Screw 4140 Steel Heat Treated Rc 43-45 black oxide Finish Yes Yes

Parts Specification

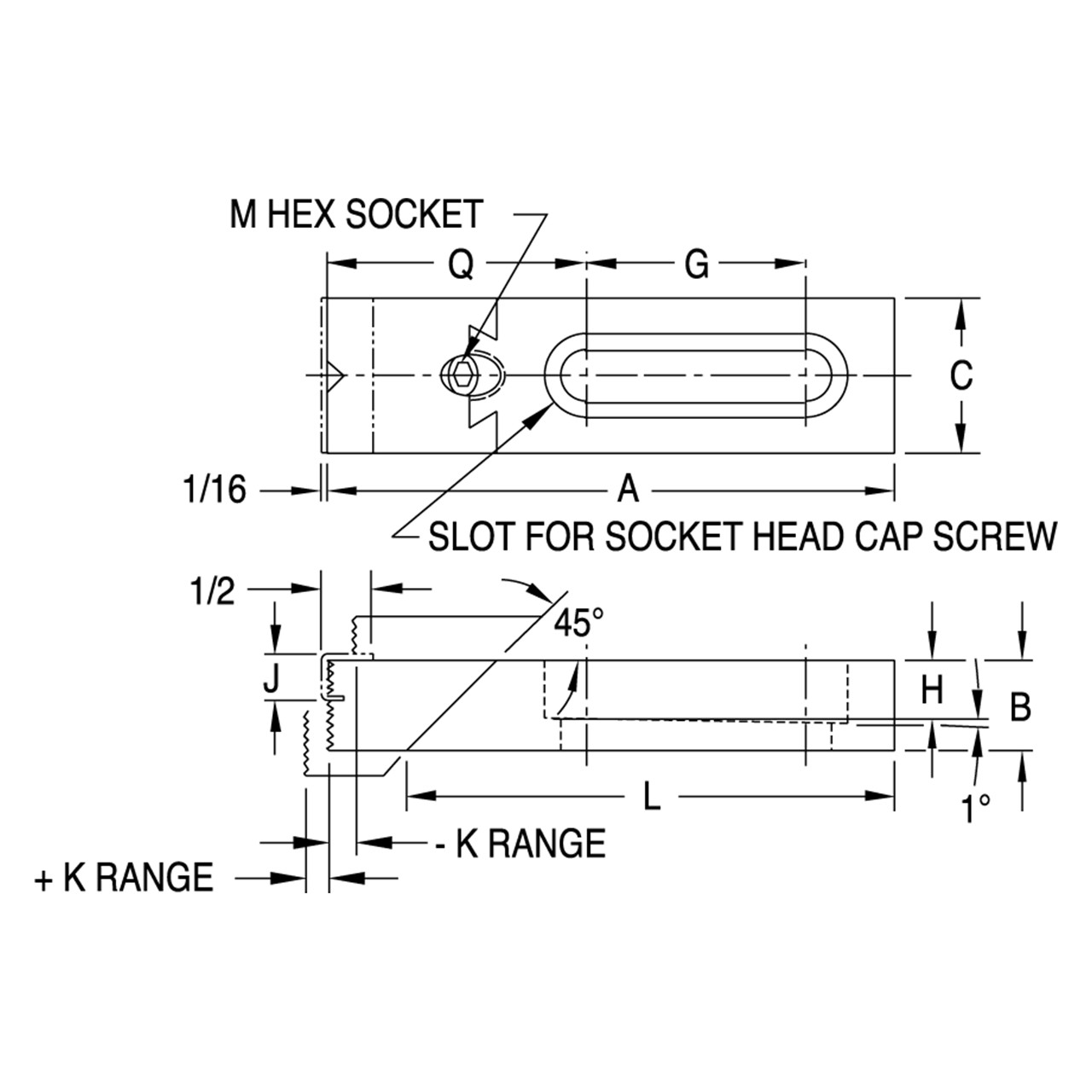

Mounting Screw SizeA (Inch)B (Inch)C (Inch)G (Inch)H (Inch)J (Inch)K (Inch)L (Inch)M (Inch)Q (Inch)
5/8-118-1/4"1-1/4"1-3/4"4"5/8"3/4"5/16"7-1/4"5/16"3"
