Product Information

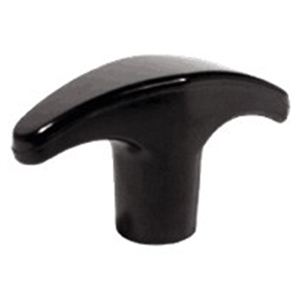

Easy-grip handle for push/pull applications, such as release latches and cabinet doors. Available in one handle size, with tapped-hole sizes from #10-32 to 5/16-18 (M5 to M8 in metric). Molded-in brass insert provides superior thread strength. Non-standard thread sizes, or molded-in studs are available in quantities of 500 and above. Made in USA.

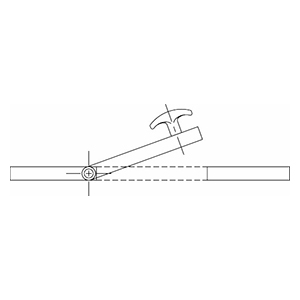

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in Brass Insert | ✔ | ✔ |
Parts Specification
| Part Number | A (mm) | B (mm) | C DIA (mm) | D (mm) | E THREAD | THREAD PITCH (mm) | F (mm) |
| CLM-422-TH-PACKOF2 | 57 | 32 | 14 | 17 | M5 | .8 | 8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
M5
Pitch (Inch):
1/32"
Pitch (Decimal Inch):
0.0300"
Pitch (mm):
0.80mm
