Colton Cutting Tools 61152 | Carbide End Mill 3 Flute Square End Standard 1/8" Diameter x 1/2" LOC x 1 1/2" OAL

$13.92 $7.35
(You save $6.57)
Brand:
Colton Industrial Tools
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1300"
Mill Diameter (mm):
3.18mm
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1300"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Carbide
End Type:
Square
Helix Angle:
30 Degree
SKU:
25176664
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Photograph of Colton Cutting Tools 61152 | Carbide End Mill 3 Flute Square End Standard 1/8" Diameter x 1/2" LOC x 1 1/2" OAL

Incredible value and performance

Attentiveness to edge prep, polishing, and post-production inspection during manufacturing yield pristine geometry and tight tolerances. Colton customers can depend on consistent performance that will reduce machining time, increase part count, and generate tremendous cost savings over the competition.

Made in the USA

Colton Cutting Tool’s carbide end mills are 100% manufactured in the USA by an ISO-certified facility using premium grinding wheels and the finest grades of carbide found in the industry.

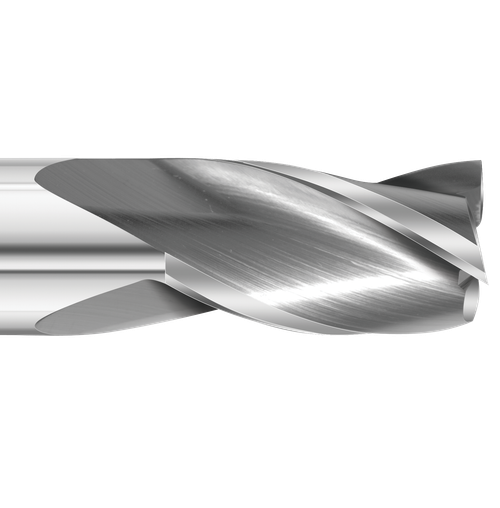

3 Flute design with options for ball and square end designs

Colton’s 3 Flute series end mill is an uncoated design offered in ball and square end designs. Choose from standard or long lengths and a multitude of options for cutting diameter, length of cut, and overall length.

  • CNC ground in the USA
  • Premium Sub-Micrograin Solid Carbide
  • Engineered for high performance and increase metal removal rates in aluminum, plastic, and easier to machine materials or where 3 flutes is preferred
  • Cutter diameter tolerance: +0.0000"/-0.002"
  • 30 Degree Helix, 3 Flutes, Square End, Standard Length
  • h6 Shank tolerance for use with shrink-fit and other high performance tool holders
  • Number of flutes: 3
  • Finish / Coating: None
  • Mill Diameter (inch): 1/8"
  • Length of cut (inch): 1/2"
  • Overall Length (inch): 1-1/2"
  • Shank Diameter: 1/8"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Colton Industrial Tools
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1300"
Mill Diameter (mm):
3.18mm
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1300"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Carbide
End Type:
Square
Helix Angle:
30 Degree
