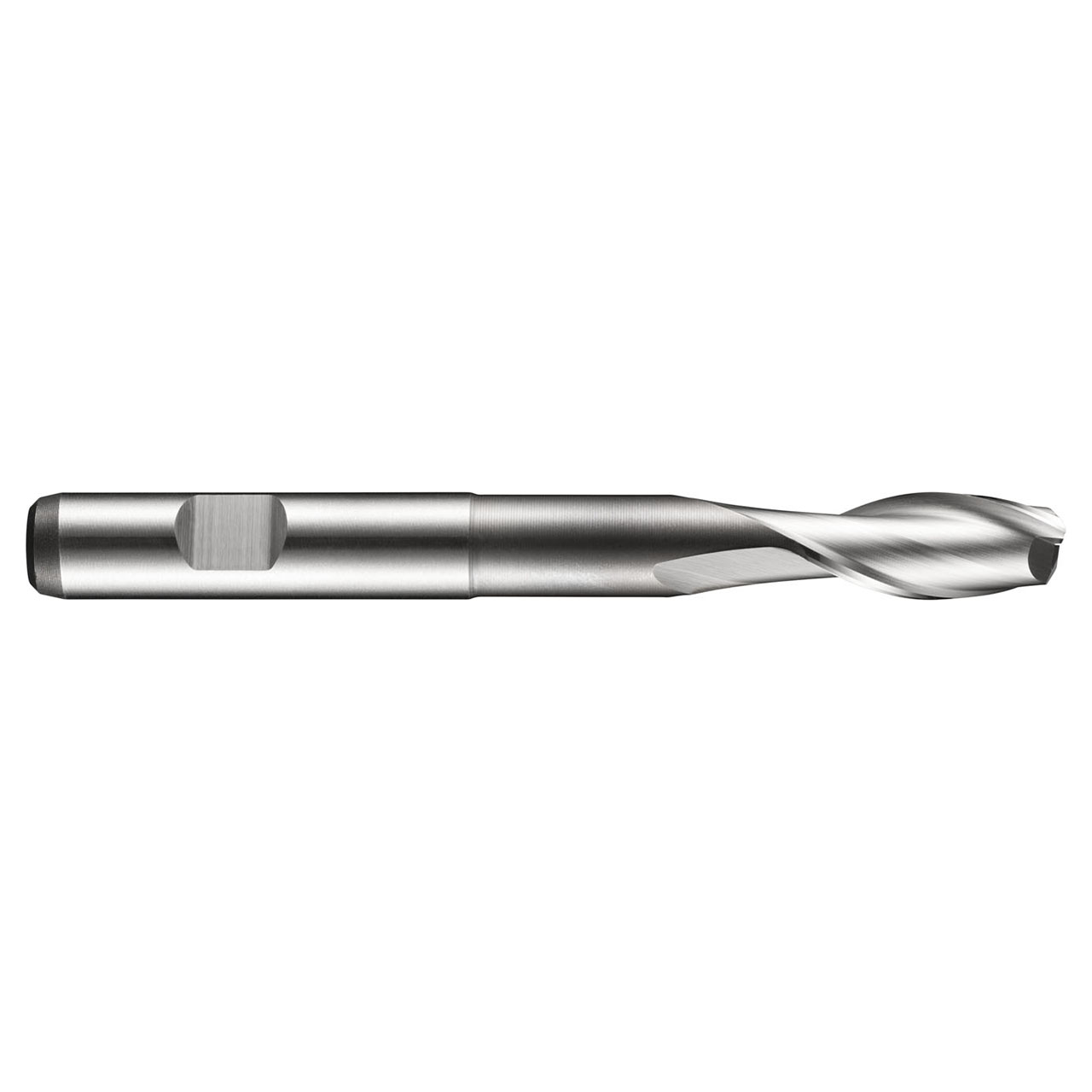

Dormer C1353.0 | 0.1181" Diameter x 2.2047" OAL 2 Flute Bright Coated Slot Drill

$29.75
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25139345
UPC:
7320760057629
Weight:
0.46 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C135 milling cutters designed with a long reach 2 flute have good rigidity which provides increased strength and reduced vibration in difficult to reach areas. They are manufactured from high speed-E so you will get longer tool life with improved performance. The tools have a bright finish which prevents workpiece material from sticking to the cutting edges so you get a cleaner, more accurate finish. The versatility of the C135 speaks for itself as it can be used for plunging, ramping and profile milling in steels, stainless steels and cast iron. The accurate diameter of C135 milling cutters means they will mill standard keyway slots to a P9 tolerance.


Product Specifications
Usable Length (mm)20mm
Max Depth of Cut (mm)8mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1181"
Overall Length (Inch)2.2047"
Material CodeHSS-E
Radial Rake Angle12
No of Flute2
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
