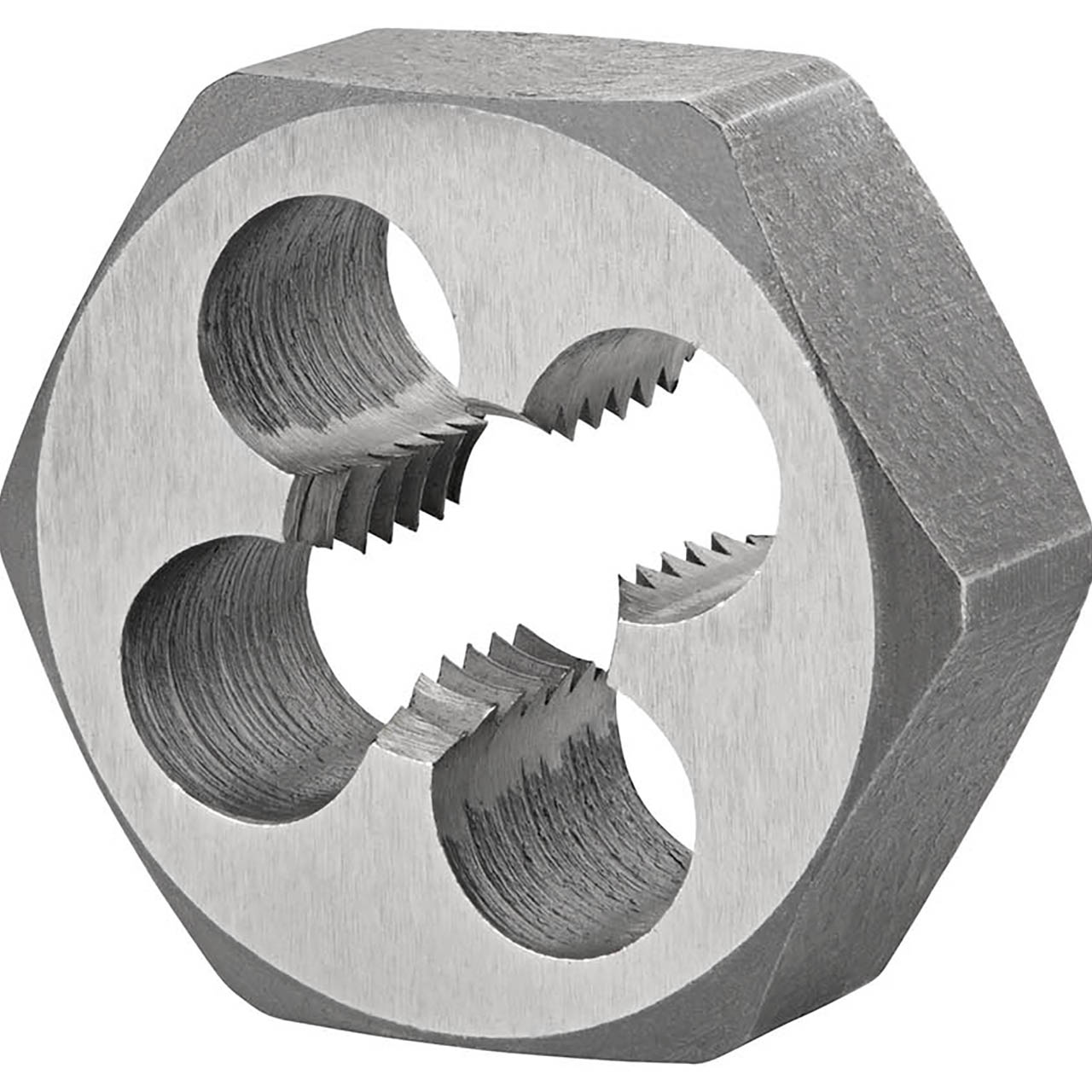

Dormer E013M12X1.5 | 18mm Diameter x 2.5mm Pitch x 0.7087" OAL Bright Coated Hexagon Die
$208.00
$123.30
Dormer
Dormer
Dormer
Dormer
Dormer
Dormer
Dormer
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M18 with 1.50mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45 Degree helix angle for 2.5xD blind hole threading in general purpose applications.
| Connection Diameter (Inch) | 0.5512" |
| Overall Length (Inch) | 4.4094" |
| Clamping Width (mm) | 11.2mm |
| No of Flutes | 4 |
| Flute Helix Angle | 45 |
| Thread Pitch (mm) | 1.5mm |
| Clamping Length | 14 |
| Thread Diameter Size | 18 |
| Threading Length (mm) | 29mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Black |
| Thread Form | MF-Metric fine |
| Country of origin | India |
