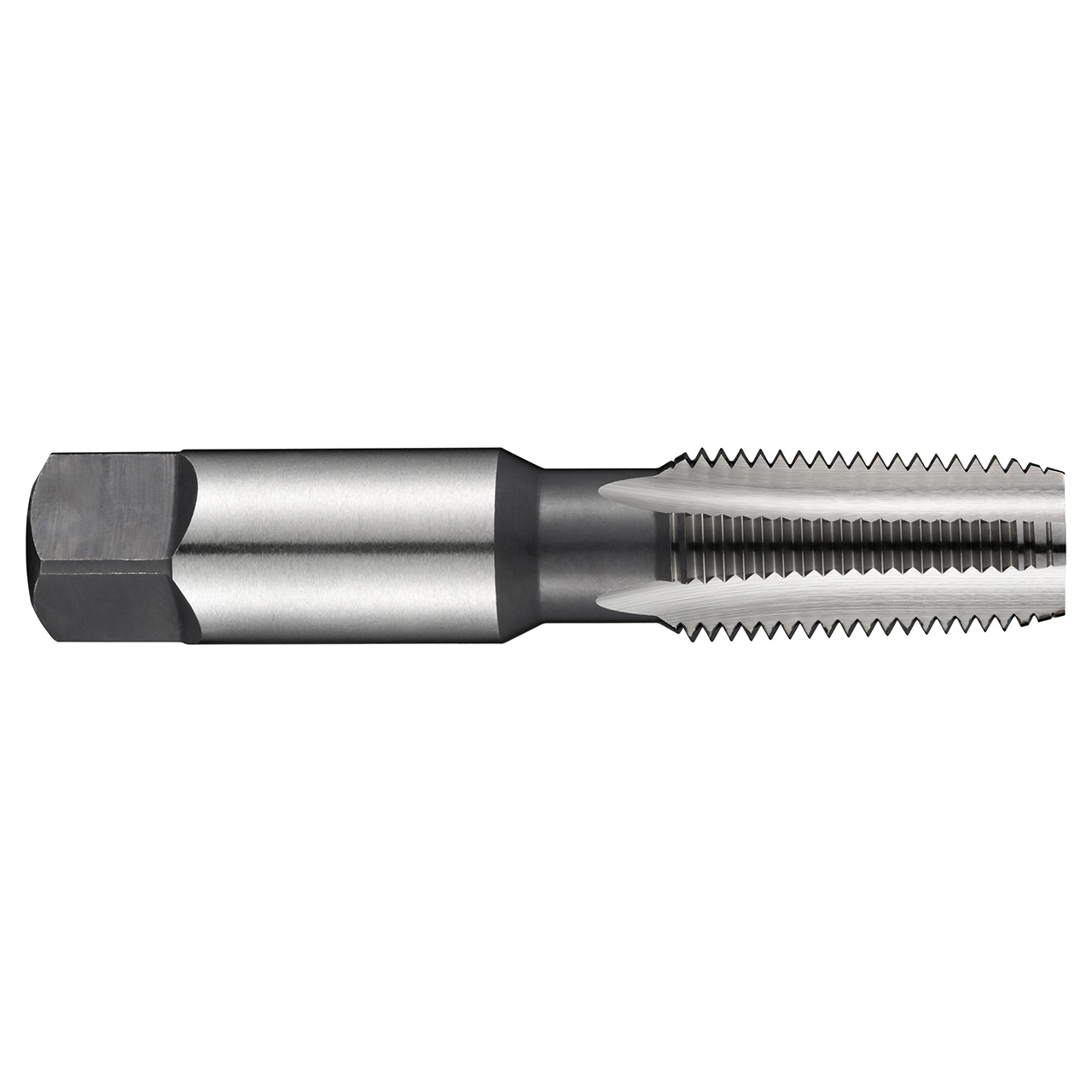

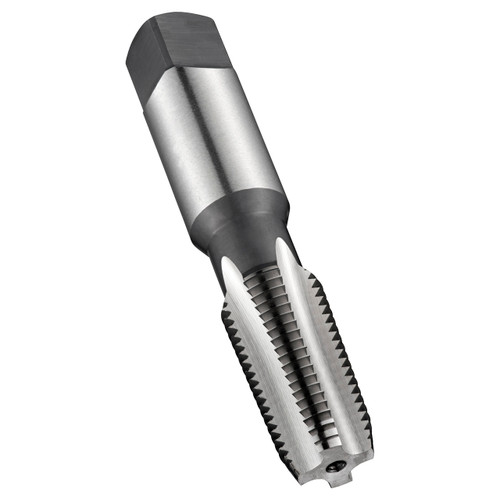

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for National Pipe Taper thread NPT 1" with 11.5 TPI and Normal class of fit, dimensions according to ~ANSI B94.9 standard with 28.6mm shank and 21.4mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys.
Product Specifications
| Connection Diameter (Inch) | 1.126" |
| Overall Length (Inch) | 4.5276" |
| Clamping Width (mm) | 21.4mm |
| Thread Diameter (mm) | 33.4mm |
| No of Flutes | 5 |
| Clamping Length | 21 |
| Thread Diameter Size | 1" |
| Threading Length (mm) | 43mm |
| Material Code | HSS |
| Thread Tolerance Class | Normal |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Tap Chamfer Style | C 2-3 |
| Surface Color | Bright Silver |
| Thread Form | NPT-National taper pipe |
