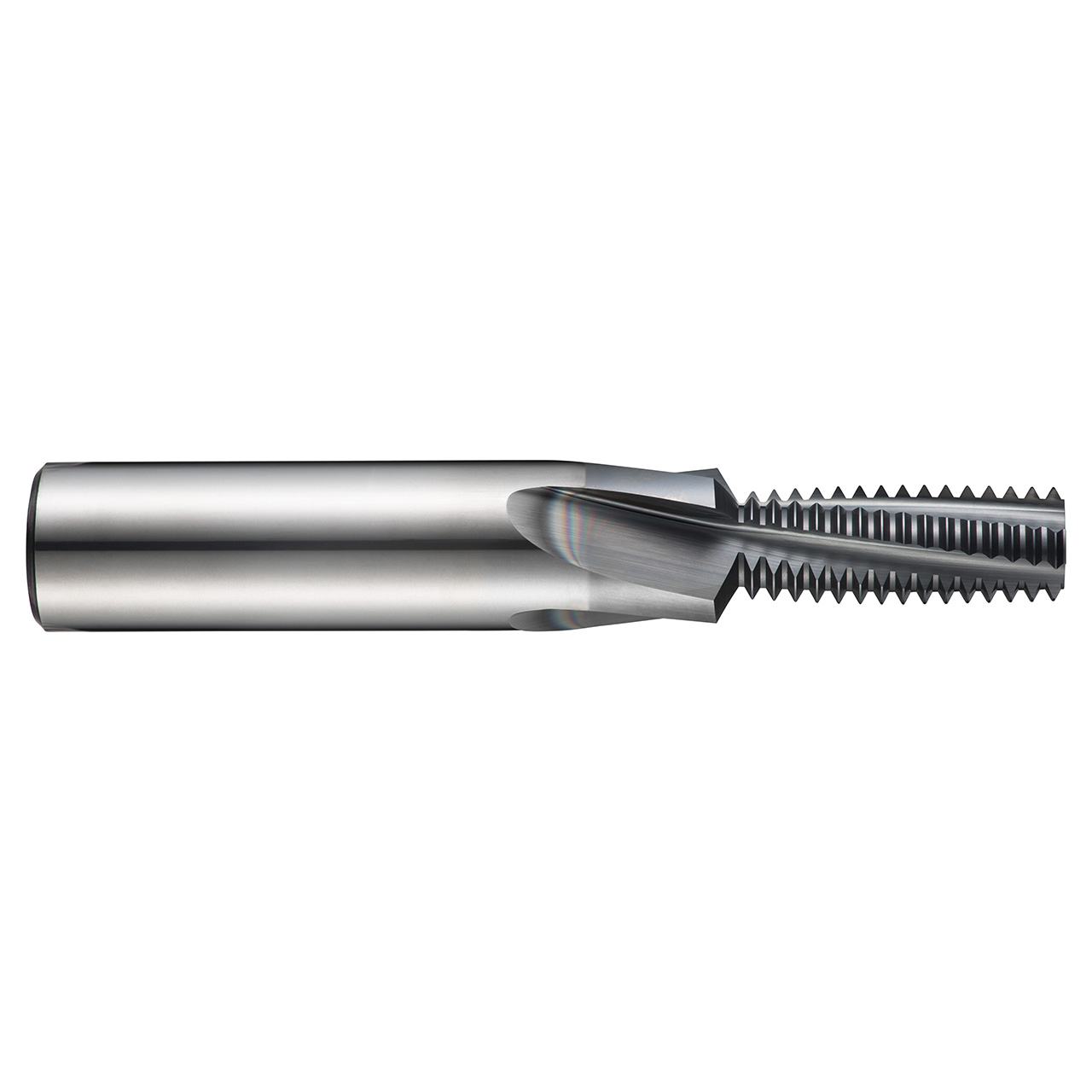

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M4 with 0.70mm pitch, dimensions according to DORMER standard with 3 flutes, 3.2mm cutting diameter and 6mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 10 Degree helix angle for milling a maximum of 8.4mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron and non-ferrous metals.
Product Specifications
| Connection Diameter (Inch) | 0.2362" |
| Cutting Diameter (Inch) | 0.126" |
| Overall Length (Inch) | 2.2441" |
| Max Depth of Cut (mm) | 8.4mm |
| No of Flutes | 3 |
| Flute Helix Angle | 10 |
| Usable Length (mm) | 9.5mm |
| Thread Pitch (mm) | 0.7mm |
| Thread Diameter Size | M4 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
| Country of origin | Germany |
