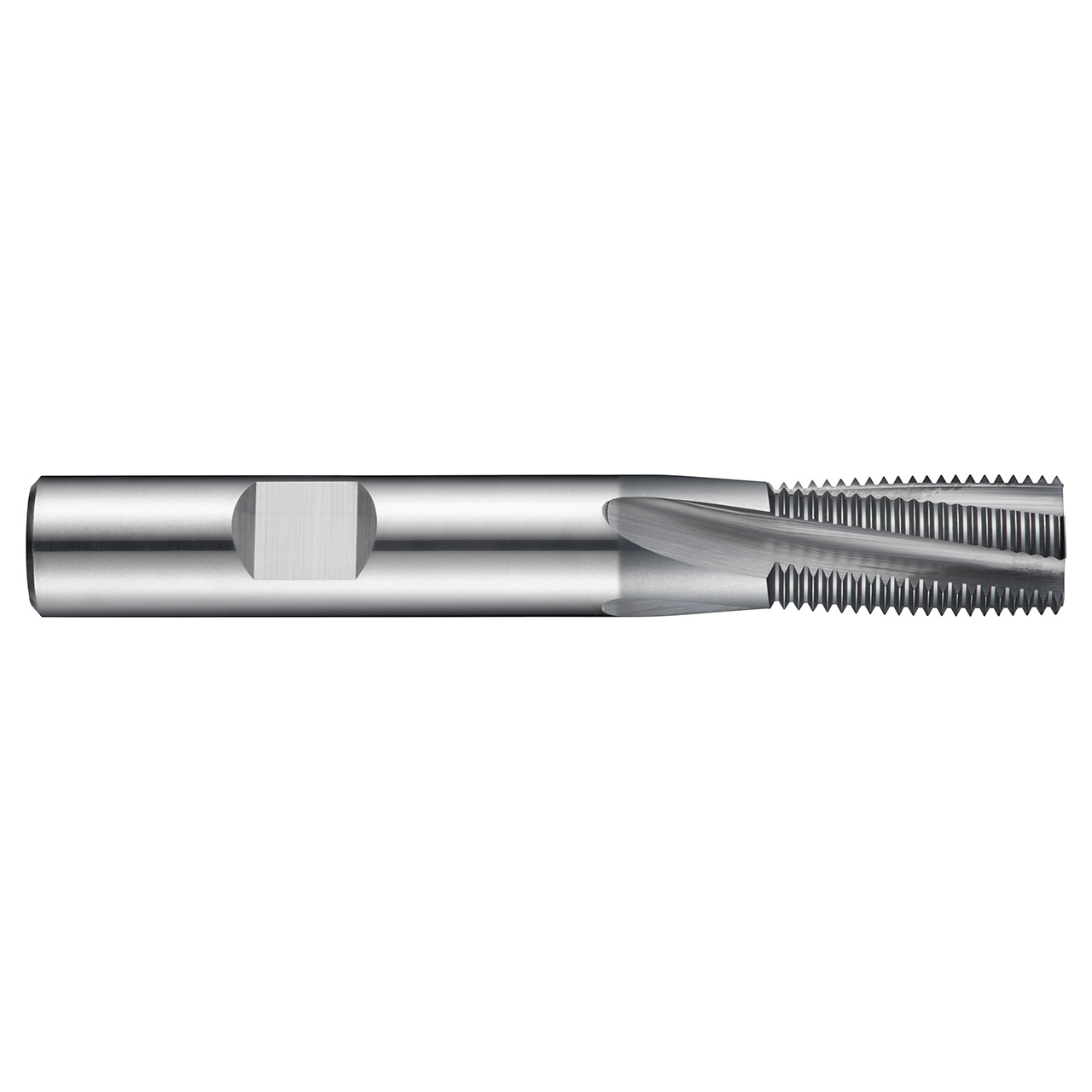

Thread milling cutter, for Unified National Coarse thread ≥ UNC 3/4" with 10 TPI, dimensions according to DORMER standard with 5 flutes, 14mm cutting diameter and 14mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 32mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys, chilled cast-iron.
Product Specifications
| Connection Diameter (Inch) | 0.5512" |
| Cutting Diameter (Inch) | 0.5512" |
| Overall Length (Inch) | 3.2677" |
| Max Depth of Cut (mm) | 32mm |
| No of Flutes | 5 |
| Flute Helix Angle | 10 |
| Thread Diameter Size | 3/4 |
| Material Code | HM |
| Cutting Direction | Right Hand |
| Coating | Alcrona Pro |
| Surface Color | Black - Deep Purple |
| Thread Form | UNC-Unified Coarse |
