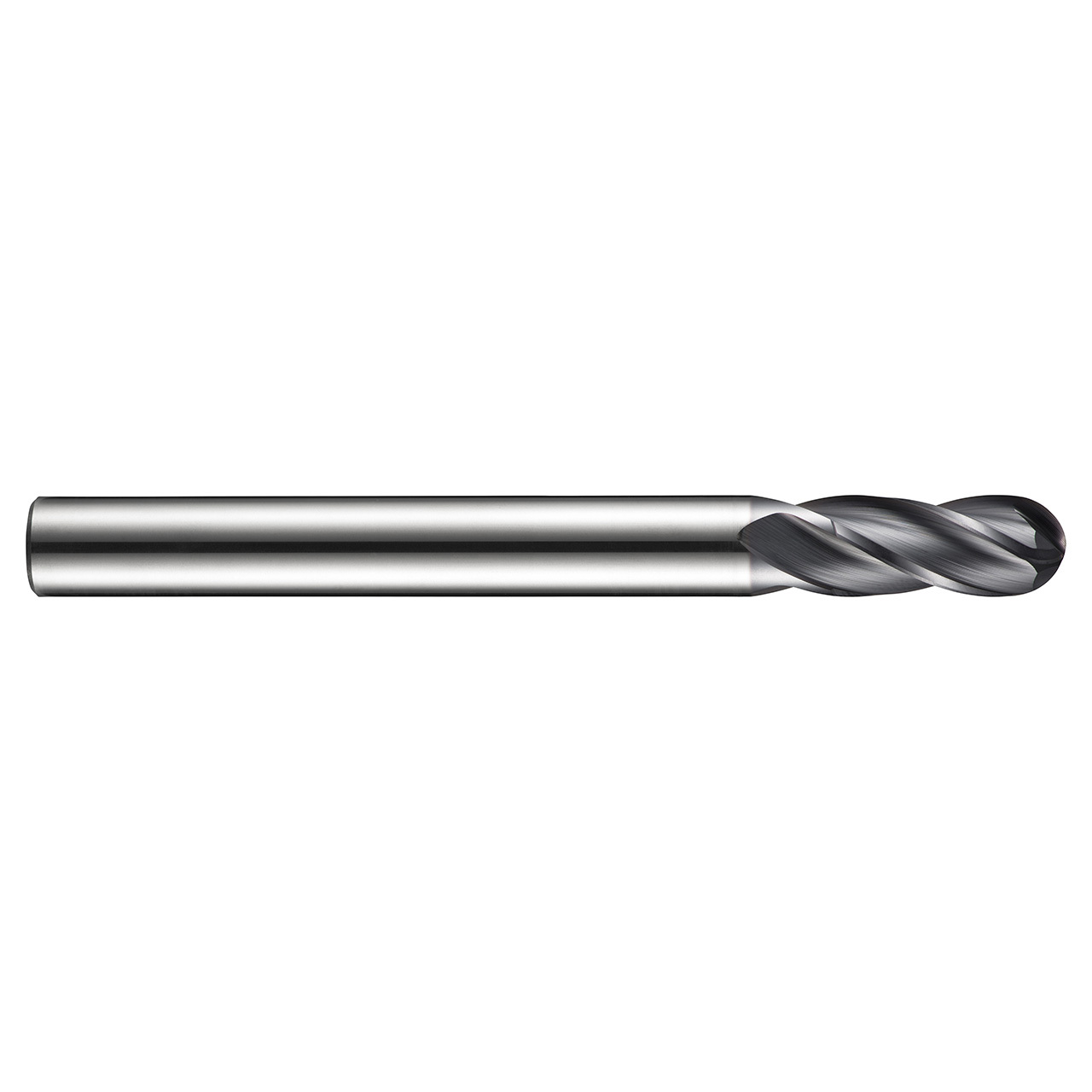

For contour milling in steels, cast iron and stainless steels, S511 4-flute milling cutters have a ball nose geometry for high performance contouring of complex surfaces. They are manufactured from premium carbide material which gives you superior performance and extended tool life and have a long, 4-flute design, giving high rigidity for increased strength and reduced vibration in deeper applications. S511 ball nose milling cutters have X-CEED coating which increases the life of the tool and improves performance when milling difficult to machine materials.
Max Depth of Cut (mm) | 19mm |
Connection Diameter (Inch) | 0.3937" |
Cutting Diameter (Inch) | 0.3543" |
Overall Length (Inch) | 3.937" |
Material Code | HM |
Radial Rake Angle | 10 |
No of Flute | 4 |
Flute Helix Angle | 30 |
Corner Radius (mm) | 4.5mm |
Coating | X-CEED |
Surface Color | Black-Deep Purple |
