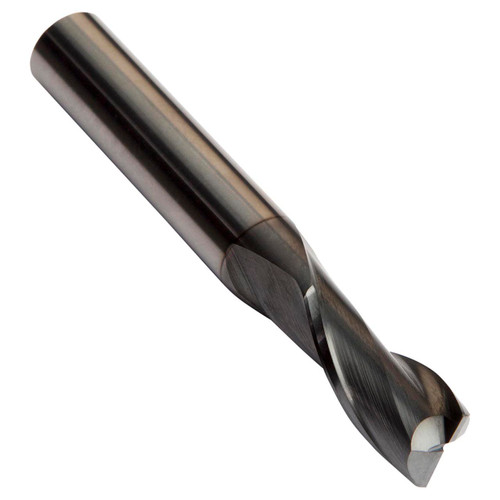

Dormer 7106967 | 18.00mm Drill Size x 18.00mm Shank x 32.00mm Maximum Depth of Cut x 92.00mm OAL x 28 Degree Helix Angle 2 Flute AlCrN Coated HM S822 Slot Drill

SKU: 25141406 Weight: 0.62 LBS Minimum Purchase: 1 unit
UPC: 7320760698563
$479.00 $287.40
(You save $191.60)
Shipping: Free Shipping

About This Item

S822 2-flute slot drills are manufactured from premium carbide and have a special Alcrona coating. These two features greatly improve tool life and provide superior performance, particularly when milling difficult to machine materials. With an accurate diameter and longer length flute, the tools are very rigid and can be used to mill standard keyway slots to a P9 tolerance. S822 2-flute end mills are very versatile and suitable for milling steels, stainless steels, cast iron and non-ferrous materials and can be used for plunging, ramping and profile milling.


Product Specifications
Max Depth of Cut (mm)32mm
Connection Diameter (Inch)0.7087"
Cutting Diameter (Inch)0.7087"
Overall Length (Inch)3.622"
Material CodeHM
Radial Rake Angle9
No of Flute2
Flute Helix Angle28
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.2mm
CoatingAlCrN
Surface ColorBlack-Deep Purple
Country of originItaly
