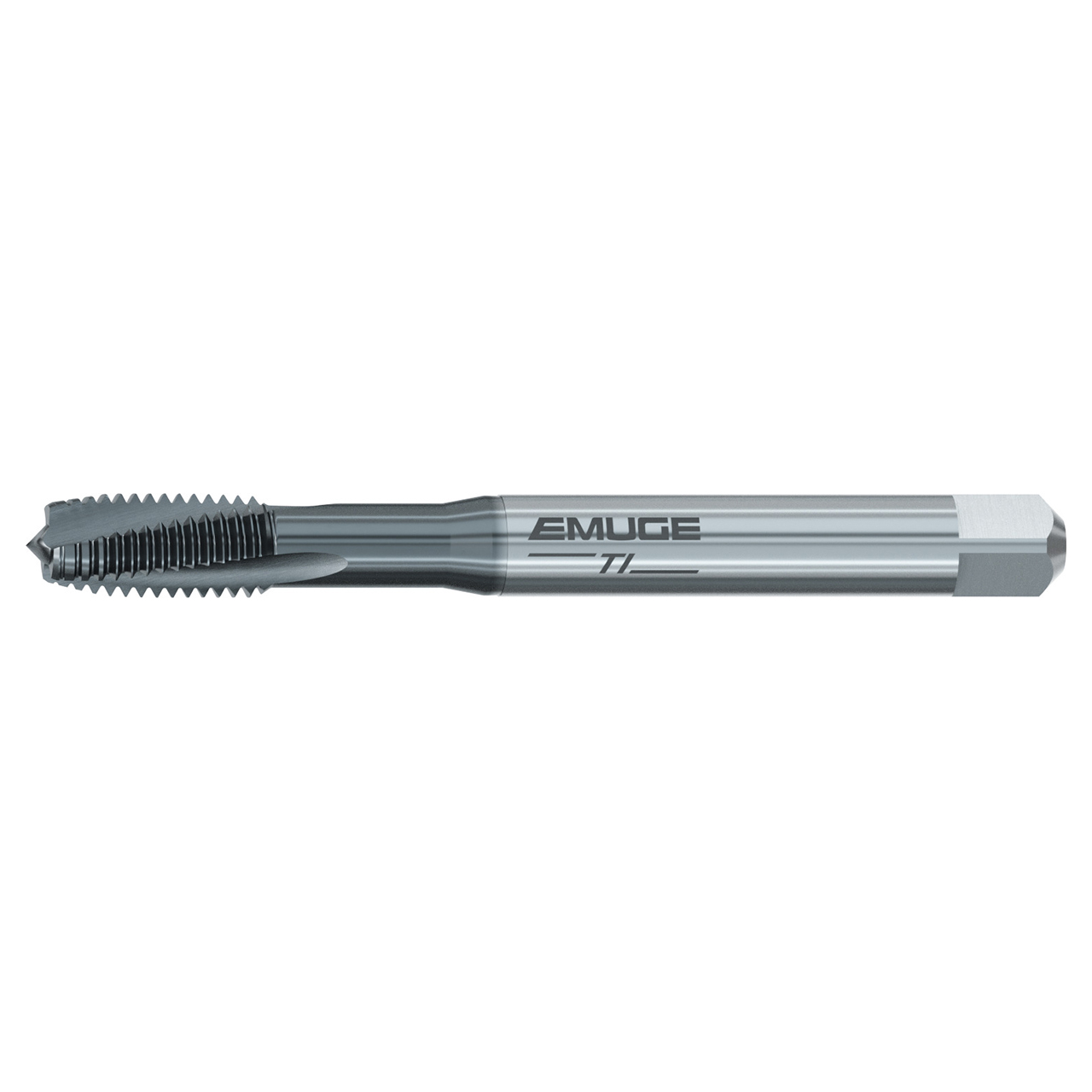

Emuge B0309611.5513 | 3/8-24" Thread x 10.00mm Shank x 90.00mm OAL TICN Coated Spiral Flute Tap

$160.72 $157.51
(You save $3.21)
Brand:
Emuge
Thread Size:
3/8-24"
Finish/Coating:
TICN
Flute Direction:
Left Hand
Threads per Inch (TPI):
24
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
interval quantity:
1
SKU:
17984514
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge B0309611.5513 | 3/8-24" Thread x 10.00mm Shank x 90.00mm OAL TICN Coated Spiral Flute Tap

Features:

  • Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials
  • Best suited for through hole applications
  • Longer tool life and more consistent thread quality
  • Constant rake angle over the entire chamfer length enables very stable chamfer teeth for machining high-strength materials

Product Specifications
Manufacturer Part NumberB0309611.5513
Thread Size3/8"-24"
Thread Diameter Size (Inch)3/8"
Thread StandardUNJF
Thread per Inch (TPI)24 TPI
Tap Square (mm)8.00mm
Thread Length (mm)18.00mm
Overall Length (mm)90.00mm
Tap Chamfer4-5 P
Tap Chamfer FormD
Class of Fit3BX
Dimensional StandardsDIN / DIN
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord C-TI
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
