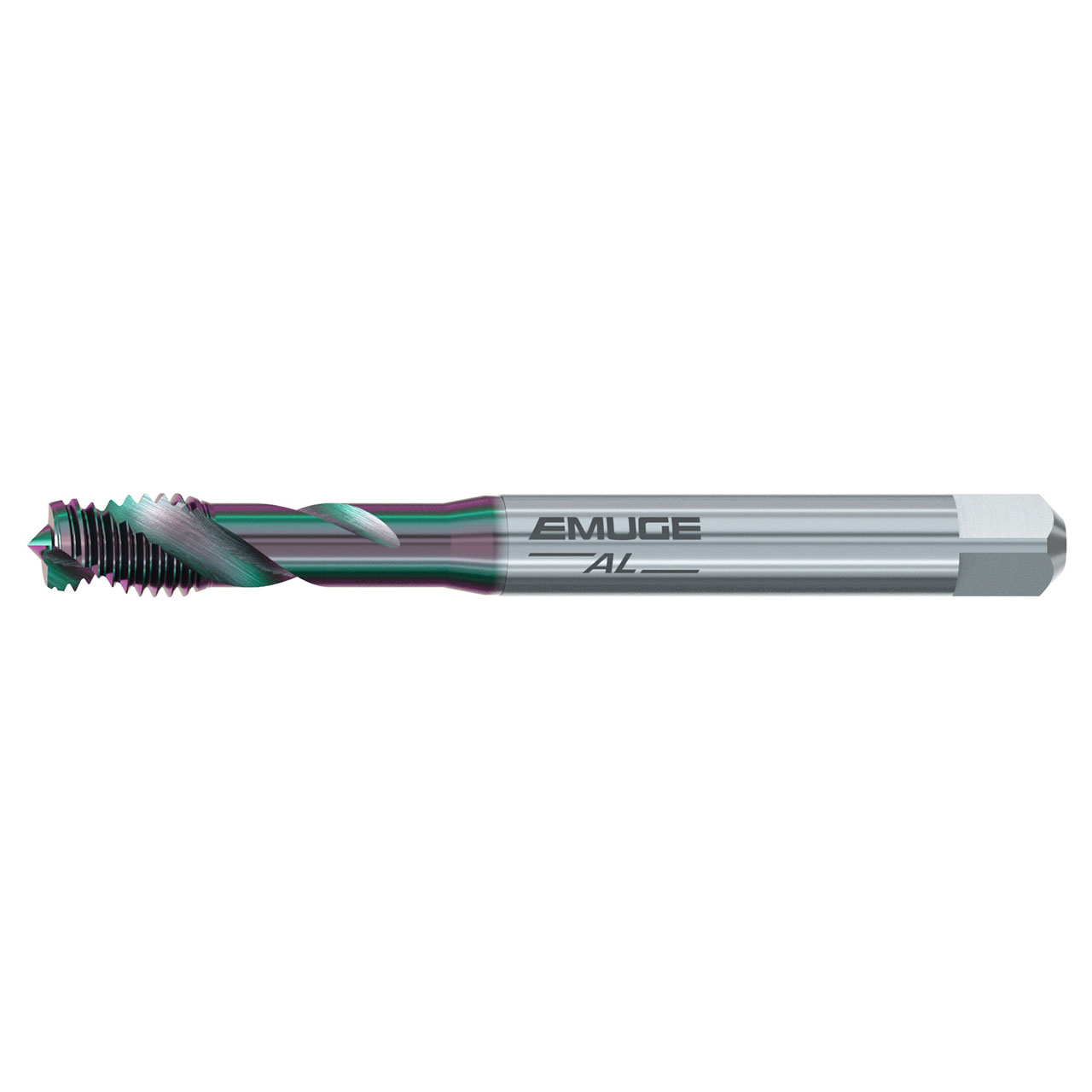

Emuge BU503G10.5003 | #4-40 Thread Size x 0.625" Thread Length x 0.286" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

Emuge BU503G10.5003 | #4-40 Thread Size x 0.625" Thread Length x 0.286" Tap Square 2 Flute GLT-104 Coated Spiral Flute Tap

SKU: 18019755 Weight: 0.01 LBS Minimum Purchase: 1 unit
UPC:
$66.20 $64.88
(You save $1.32)
Shipping: Calculated at Checkout

About This Item

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
  • The fast spiral flute (45 Degree) provides good chip removal from blind holes
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU503G10.5003
Thread Size#4-40
Thread Diameter Size#4
Thread Per Inch (TPI)40 TPI
Tap Square (Decimal Inch)0.286"
Thread Length (Decimal Inch)0.625"
Overall Length (Decimal Inch)2.205"
Length GroupDIN Length
Number of Flutes2
Flute Helix Angle (Degree)45 Degree
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Thread StandardUNC
Thread Tolerance Class3B
Tap Chamfer2 -3 P
Tap Chamfer FormC
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Flute Tap
