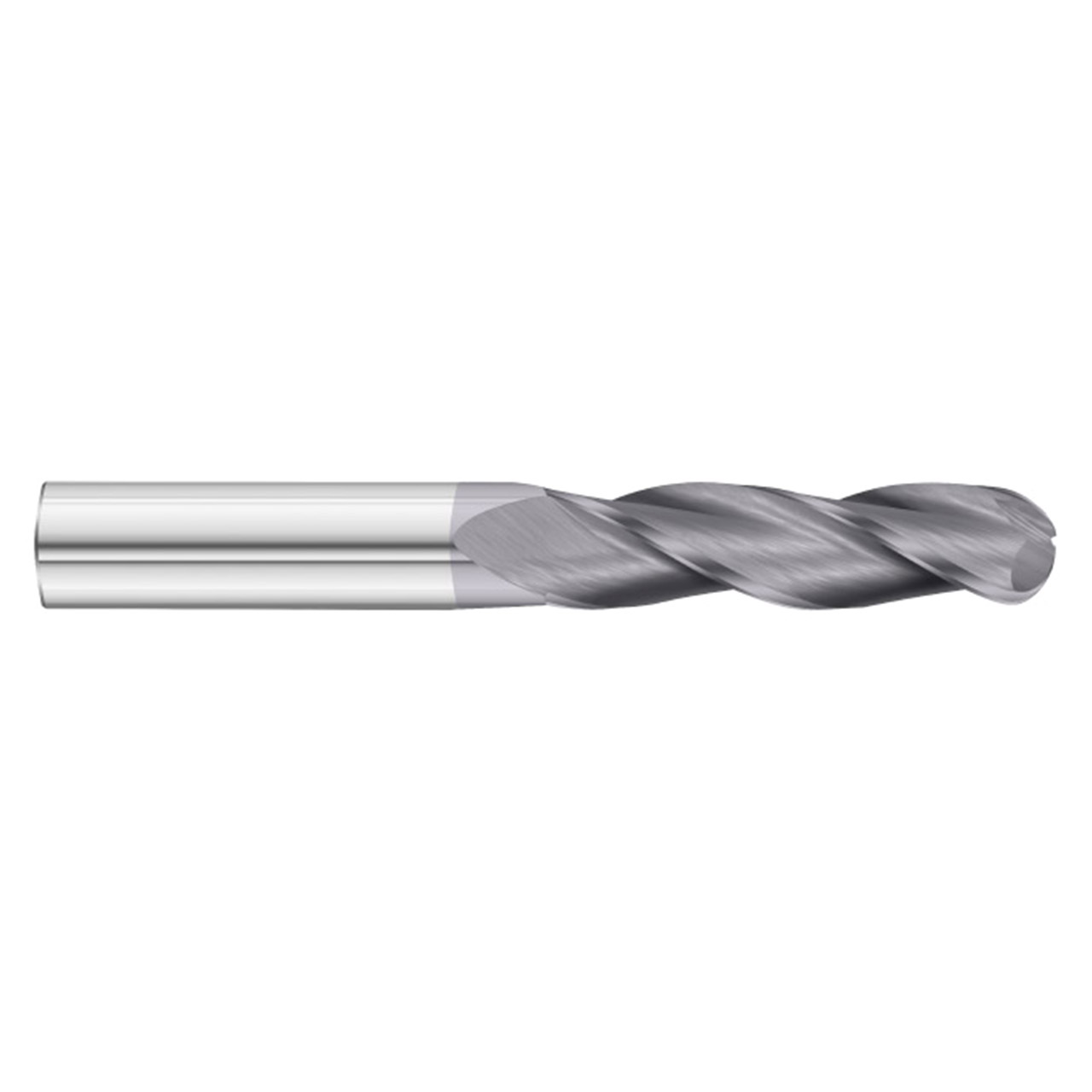

It's designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, high si aluminum, and low si aluminum and it offers a variety of configurations. The 3300 3-Flute General Purpose end mill has 3-flutes and is stocked uncoated and with TiAlN coatings. Get started with The 3-Flute General Purpose end mill today!
| Manufacturer Part Number | 30012 |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Cutting Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Cutting Flute Length (Inch) | 2-1/2" |
| Cutting Flute Length (Decimal Inch) | 2.500 |
| Cutting Flute Length (mm) | 63.50mm |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.000" |
| Overall Length (mm) | 127.00mm |
| Number of Flutes | 3 |
| Helix Angle (Degree) | 30.00 Degree |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Ball |
| Coating | TiAlN |
| Series | 3300 |
| Product Type | Ball End Mill |
