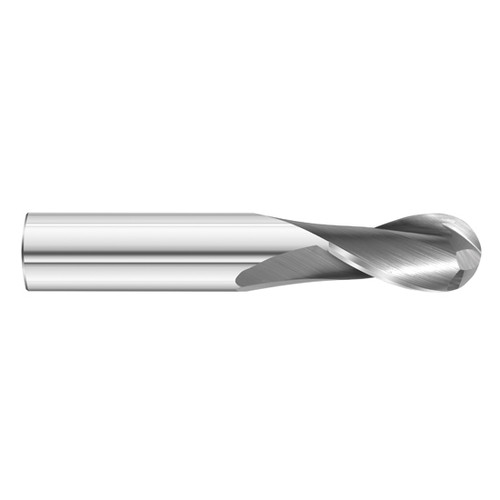

Fullerton Tool 32089 | 1/16" Diameter x 1/8" Shank x 1/4" LOC x 1-1/2" OAL 2 Flute Uncoated Solid Carbide Ball End Mill

$19.61 $12.35
(You save $7.26)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/16"
Number of Flutes:
2
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Length of Cut (mm):
6.35mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
25001285
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features

  • The 3215 General Purpose end mill has 2-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.0625"
Cutting Diameter (mm) 1.59mm
Cutting Diameter (Inch) 1/16"
Cutting Flute Length (Decimal Inch) 0.2500"
Cutting Flute Length (mm) 6.35mm
Cutting Flute Length (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
