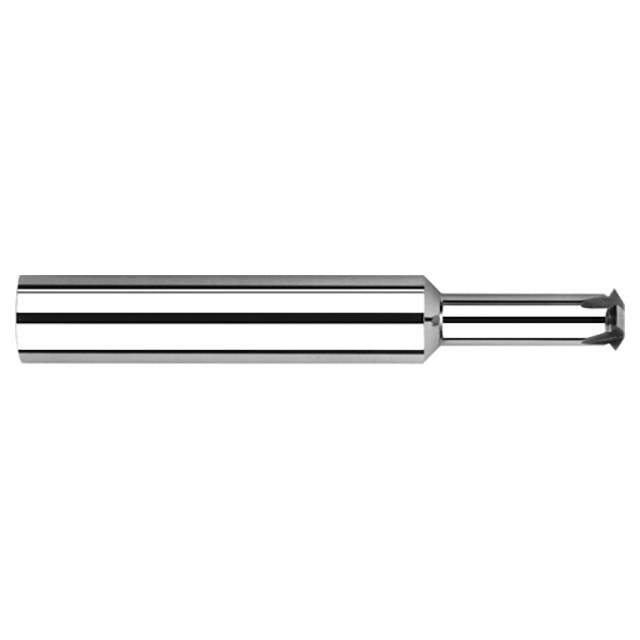

Harvey Tool 826526 | 60 Degree Included Angle x 3.000mm Diameter x 3.000mm Shank x 14.000mm OAL 4 Flute Uncoated Carbide Single Profile Thread Mill

$92.50
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutter Diameter (mm):
3.00mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (mm):
3mm
Overall Length (mm):
14mm
Ships:
From Partner Facility
SKU:
25120135
UPC:
Weight:
0.10 LBS
Shipping:
Free Shipping
Product Specifications
Cutter Diameter (mm) 3.000mm
Neck Diameter (mm) 1.80mm
Length of Cut (mm) 0.693mm
Overall Length (mm) 38.000mm
Max Depth of Thread (mm) 14.000mm
Angle per Side 30 Degree
Included Angle 60 Degree
Number of Flutes 4
Reach Multiple 8x
Size (mm) M4
Shank Diameter (mm) 3.000mm
Metric (Yes/No) Yes
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating Uncoated
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
