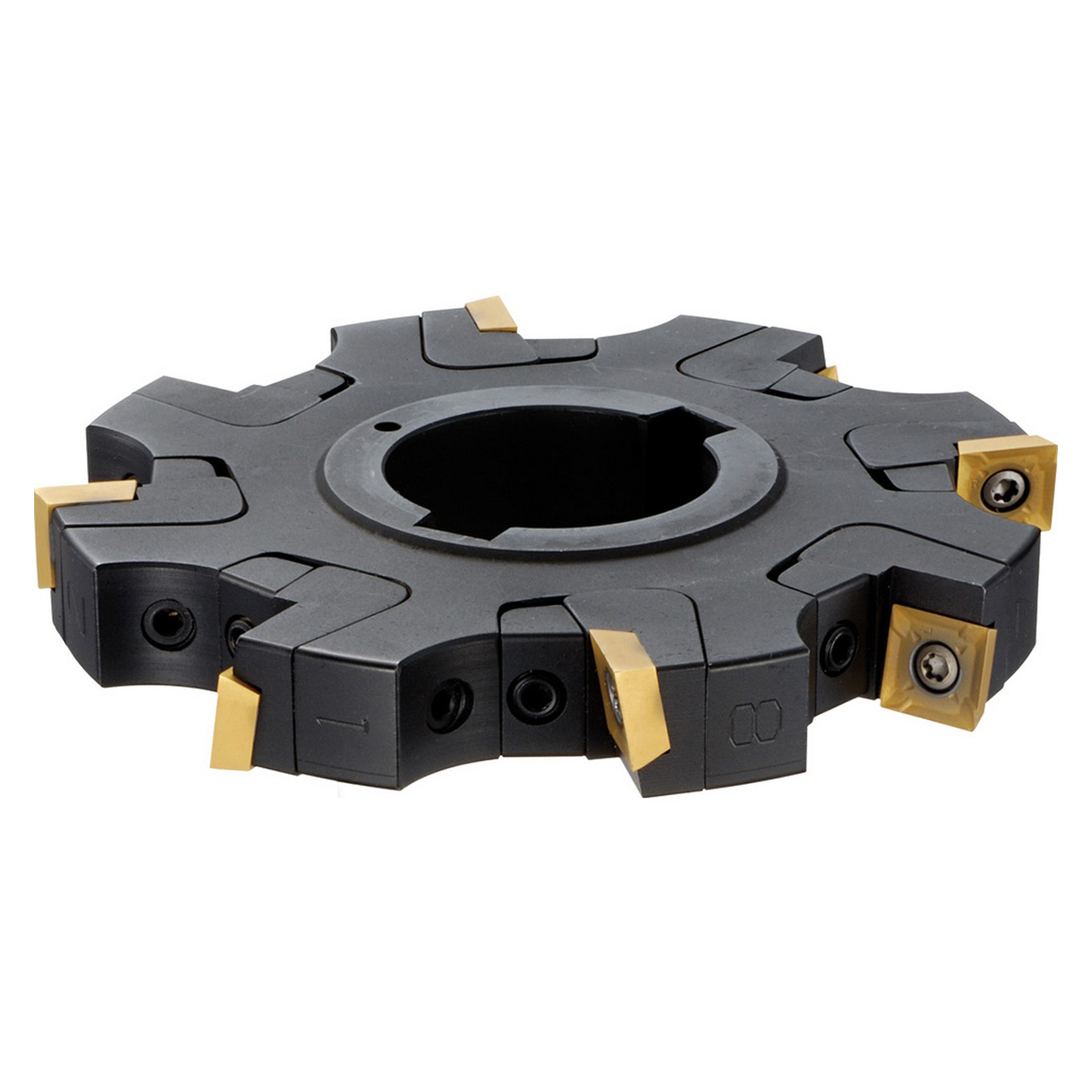

Kyocera Precision Tools THC10202 | MSTC160AN1820125T 6.2992" Diameter x 2.0276" Maximum Depth of Cut Steel Indexable Slot Mill

Kyocera Precision Tools THC10202 | MSTC160AN1820125T 6.2992" Diameter x 2.0276" Maximum Depth of Cut Steel Indexable Slot Mill

Name: Kyocera Precision Tools THC10202 | MSTC160AN1820125T 6.2992" Diameter x 2.0276" Maximum Depth of Cut Steel Indexable Slot Mill
Brand: Kyocera Precision Tools
SKU: 23229483
Price: 2705.36 USD
Availability: InStock

SKU: 23229483 Weight: 5.53 LBS Minimum Purchase: 1 unit

UPC:

$3,259.47 $2,705.36

(You save $554.11)

Total Price: $2,705.36

Quantity:

Shipping: Free Shipping

About This Item

Features:

Lay-down type inserts/fully adjustable slot width
Smooth slotting width adjustment is possible due to unique cam style adjustment mechanism
Four-sided inserts are cost-effective
Wide range of corner radii
Numerous insert geometries and grades, are for various types of workpiece machining

Product Specifications

EDP Number	THC10202
Max Depth of Cut (Decimal Inch)	2.0276"
Max Depth of Cut (mm)	51.50mm
Cutting Width (Decimal Inch)	0.7087 - 0.8150"
Cutting Width (mm)	18.00 - 20.70mm
Cutting Width Minimum (Decimal Inch)	0.7087"
Cutting Width Minimum (mm)	18.00mm
Cutting Width Maximum (Decimal Inch)	0.8150"
Cutting Width Maximum (mm)	20.70mm
Cutting Diameter (Decimal Inch)	6.2992"
Cutting Diameter (mm)	160.00mm
Cutting Diameter Minimum (Decimal Inch)	6.2992"
Cutting Diameter Minimum (mm)	160.00mm
Cutting Diameter Maximum (Decimal Inch)	6.2992"
Cutting Diameter Maximum (mm)	160.00mm
Cutting Diameter Maximum (mm)	1.5748"
Connection Bore Diameter (mm)	40.00mm
Contact Surface Diameter Machine Side (Decimal Inch)	2.1575"
Contact Surface Diameter Machine Side (mm)	54.80mm
Application	Shouldering \| Slotting
Hand	Neutral
Insert Holding Method	Screw
Material	Steel
