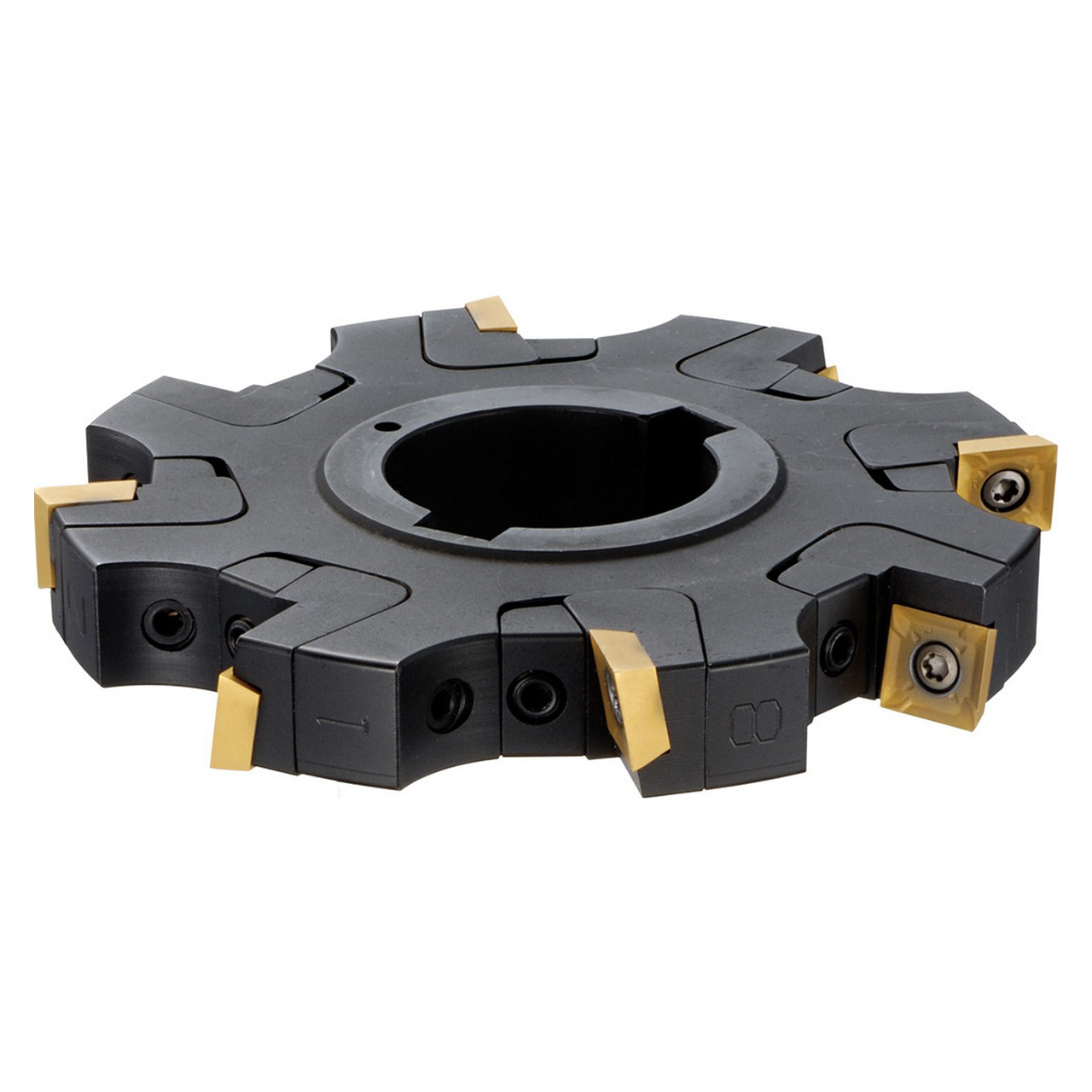

Kyocera Precision Tools THC10302 | MSTC160SL18201210T 6.2992" Diameter x 1.7087" Maximum Depth of Cut Steel Indexable Slot Mill

SKU: 23229497 Weight: 6.64 LBS Minimum Purchase: 1 unit
UPC:
$3,386.51 $2,810.80
(You save $575.71)
Shipping: Free Shipping

About This Item

Features:

  • Lay-down type inserts/fully adjustable slot width
  • Smooth slotting width adjustment is possible due to unique cam style adjustment mechanism
  • Four-sided inserts are cost-effective
  • Wide range of corner radii
  • Numerous insert geometries and grades, are for various types of workpiece machining

Product Specifications
EDP NumberTHC10302
Maximum Depth of Cut (Decimal Inch)0.4606"
Shank Width (Decimal Inch)0.4724"
Max Depth of Cut (Decimal Inch)1.7087"
Max Depth of Cut (mm)43.40mm
Cutting Diameter (Decimal Inch)6.2992"
Cutting Diameter (mm)160.00mm
Cutting Diameter Minimum (Decimal Inch)6.2992"
Cutting Diameter Minimum (mm)160.00mm
Cutting Diameter Maximum (Decimal Inch)6.2992"
Cutting Diameter Maximum (mm)160.00mm
Cutting Diameter Maximum (mm)1.5748"
Connection Bore Diameter (mm)40.00mm
ApplicationBack Side Milling | Shouldering
HandLeft Hand
Insert Holding MethodScrew
MaterialSteel
