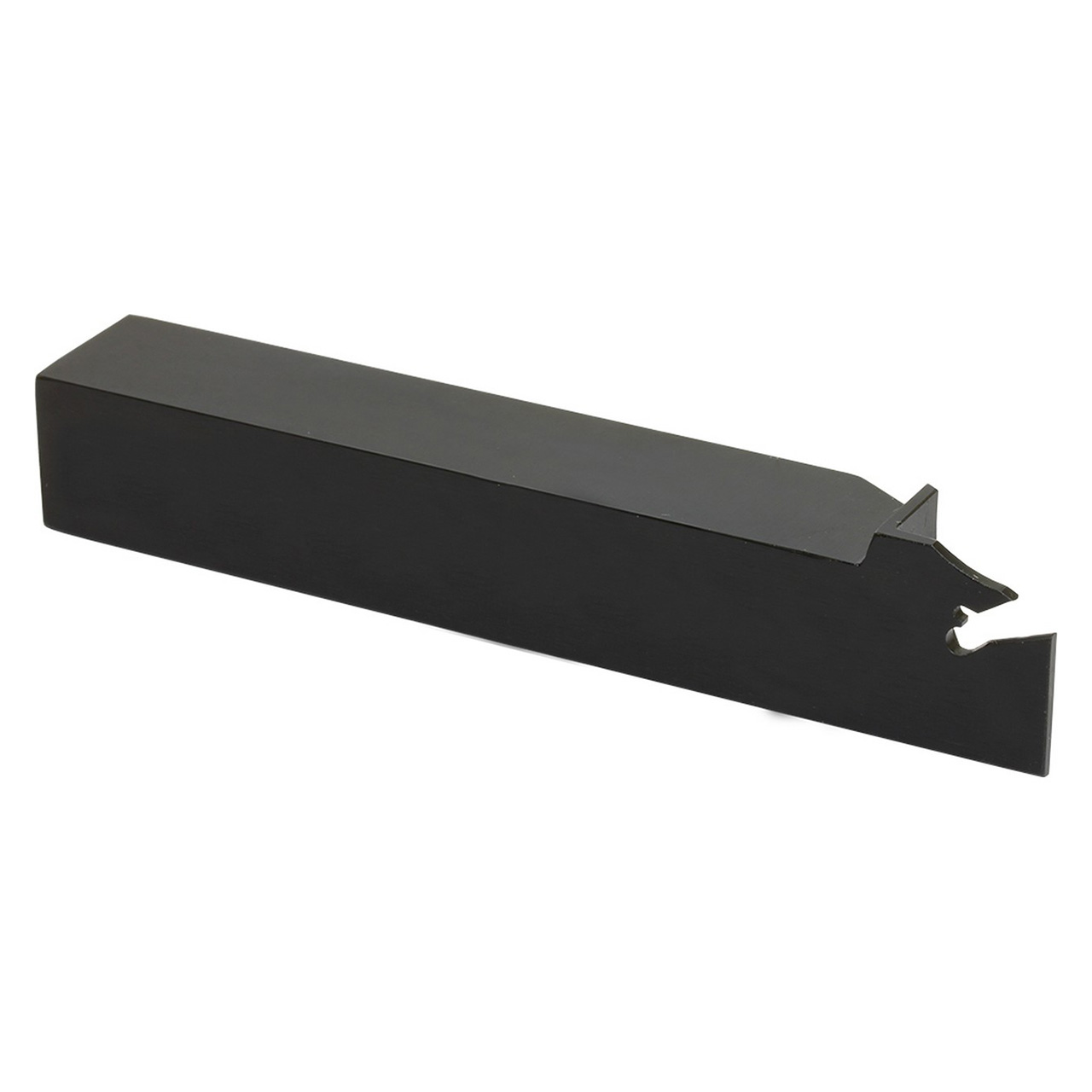

Kyocera Precision Tools THP06225 | KTKHL2525M5S 0.9843" Shank Width x 3.1102" Max Cut Of Depth x 0.9843" Shank Height Steel Cut-Off Toolholder

$213.52
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
3.1102":
Maximum Workpiece Diameter (mm)
79.00mm:
Series;KTKC=Toolholder Style"
KTKH-S:
Shank Width/Diameter (Decimal Inch)
0.9843":
Shank Width/Diameter (mm)
25.00mm:
Shank Height (Decimal Inch)
0.9843":
Shank Height (mm)
SKU:
23234256
Weight:
1.50 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Left-Hand KTKH-S toolholder
  • Application : cut-off
  • Insert holding design
  • Compatible with Left-Hand TKN4.8, TKN5, TKL5 inserts

Product Specifications
EDP NumberTHP06225
Maximum Depth of Cut (mm)8.00mm
Shank Width (mm)25.00mm
Maximum Cut-Off Diameter (Decimal Inch)3.1102"
Maximum Cut-Off Diameter (mm)79.00mm
Shank Height (Decimal Inch)0.9843"
Shank Height (mm)25.00mm
ApplicationCut-Off
HandLeft Hand
Insert Holding MethodSelf-Clamp
MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
3.1102":
Maximum Workpiece Diameter (mm)
79.00mm:
Series;KTKC=Toolholder Style"
KTKH-S:
Shank Width/Diameter (Decimal Inch)
0.9843":
Shank Width/Diameter (mm)
25.00mm:
Shank Height (Decimal Inch)
0.9843":
Shank Height (mm)
