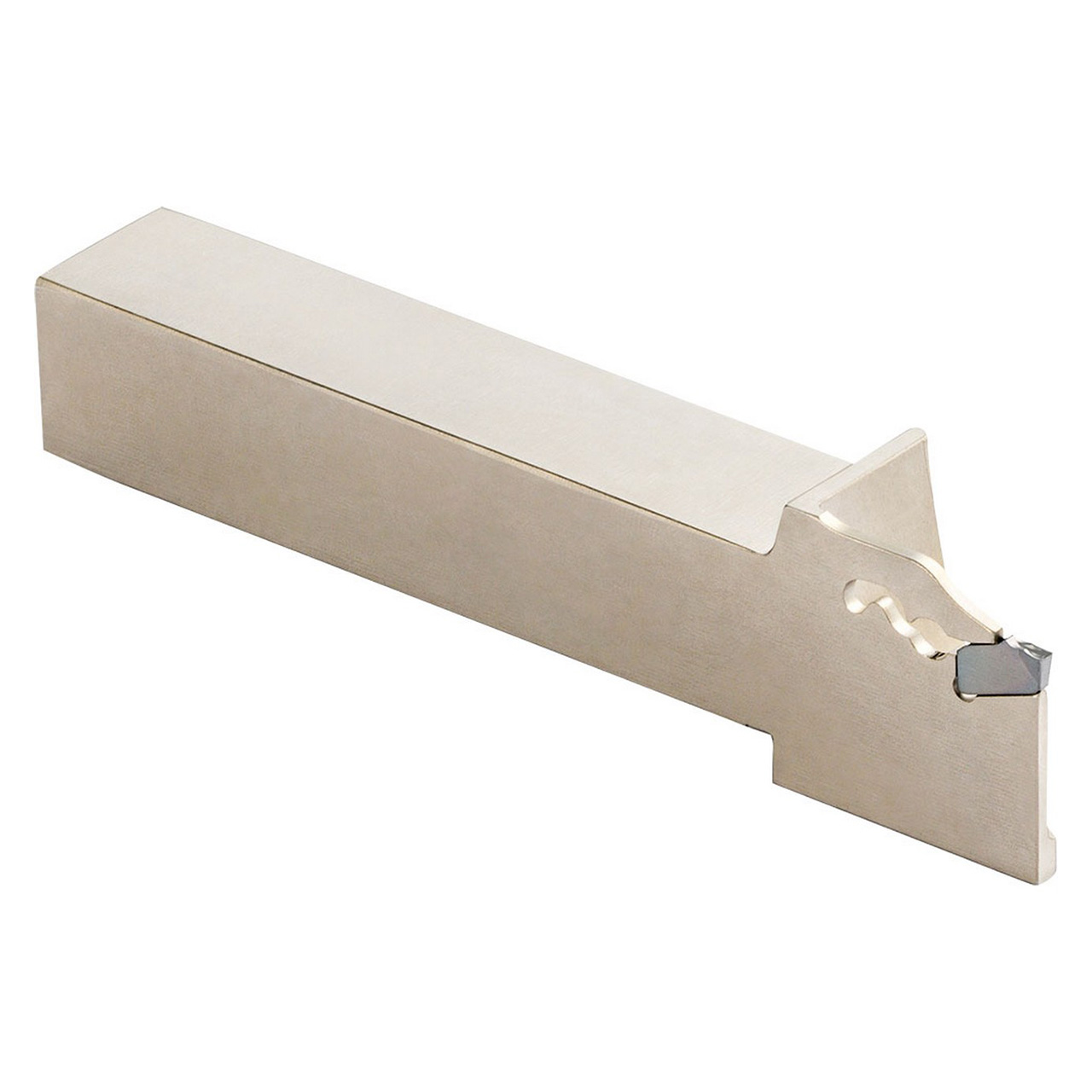

Features:
- Easy self-clamping insert replacement
- Firm insert clamp ensures added safety and security
- Compatible with PKM48, PKM50. inserts
Product Specifications
| EDP Number | THP06863 |
| Maximum Depth of Cut (mm) | 6.00mm |
| Shank Width (mm) | 25.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 3.1102" |
| Maximum Cut-Off Diameter (mm) | 79.00mm |
| Cutting Width (Decimal Inch) | 0.1890 - 0.1969" |
| Cutting Width (mm) | 4.80 - 5.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1890" |
| Cutting Width Minimum (mm) | 4.80mm |
| Cutting Width Maximum (Decimal Inch) | 0.1969" |
| Cutting Width Maximum (mm) | 5.00mm |
| Shank Height (Decimal Inch) | 0.9843" |
| Shank Height (mm) | 25.00mm |
| Application | Cut-Off |
| Hand | Left Hand |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Maximum Workpiece Diameter (Decimal Inch):
3.1102"
Maximum Workpiece Diameter (mm):
79.00mm
Series:
KPK;Toolholder Style=KPKH"
Shank Width/Diameter (Decimal Inch):
0.9843"
Shank Width/Diameter (mm):
25.00mm
Shank Height (Decimal Inch):
0.9843"
Shank Height (mm):
25.00mm
