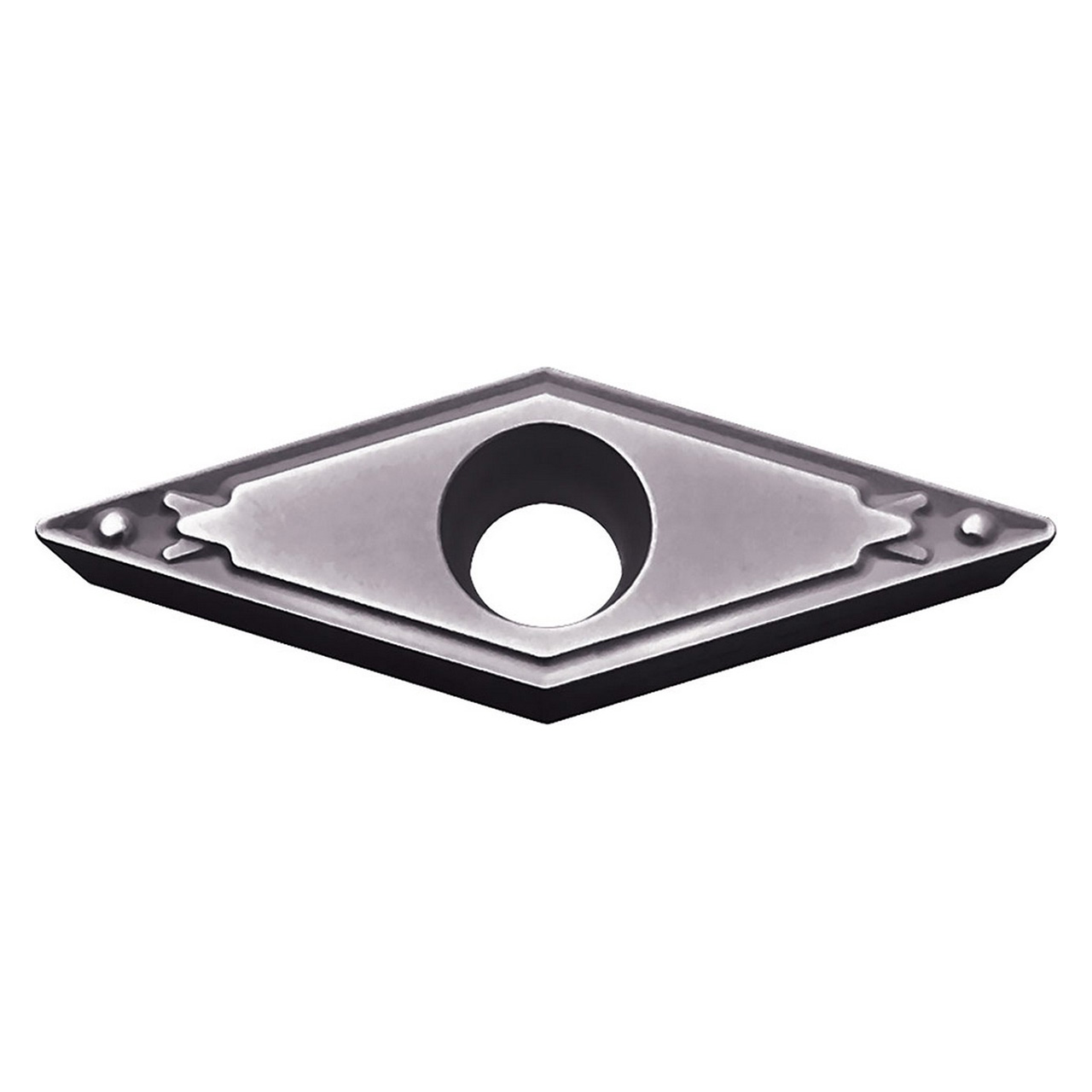

Kyocera Precision Tools TLM00383 | VCMT15151HQ PR1725 3/16" Circle Diameter x 3/32" Thickness PVD Coated Carbide Indexable Turning Insert

$37.14 $21.54
(You save $15.60)
Brand:
Kyocera Precision Tools
Insert Style:
VCMT
Insert Size:
15151
Material:
Carbide
Inscribed Circle (Inch):
3/16"
Inscribed Circle (mm):
4.76mm
Thickness (Inch):
3/32"
Thickness (mm):
2.38mm
Corner Radius (Inch):
1/64"
Corner Radius (mm):
0.40mm
interval quantity:
10
SKU:
23245284
UPC:
Weight:
0.06 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
  • 2 Cutting edges
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications

Product Specifications
EDP NumberTLM00383
Inscribed Circle (Inch)3/16"
Inscribed Circle (mm)4.76mm
Corner Radius (Inch)1/64"
Corner Radius (mm)0.40mm
Thickness (Inch)3/32"
Thickness (mm)2.38mm
ApplicationBack Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting
ChipbreakerHQ
Coating ProcessPVD
Cutting RangeFinishing Medium
HandNeutral
Insert GradePR1725
Insert Holding MethodScrew or Clamp
Insert Shape35 Degree Diamond
Insert Included Angle ( Degree)35 Degree
Insert Size15151
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationLight Interruption
