Features:

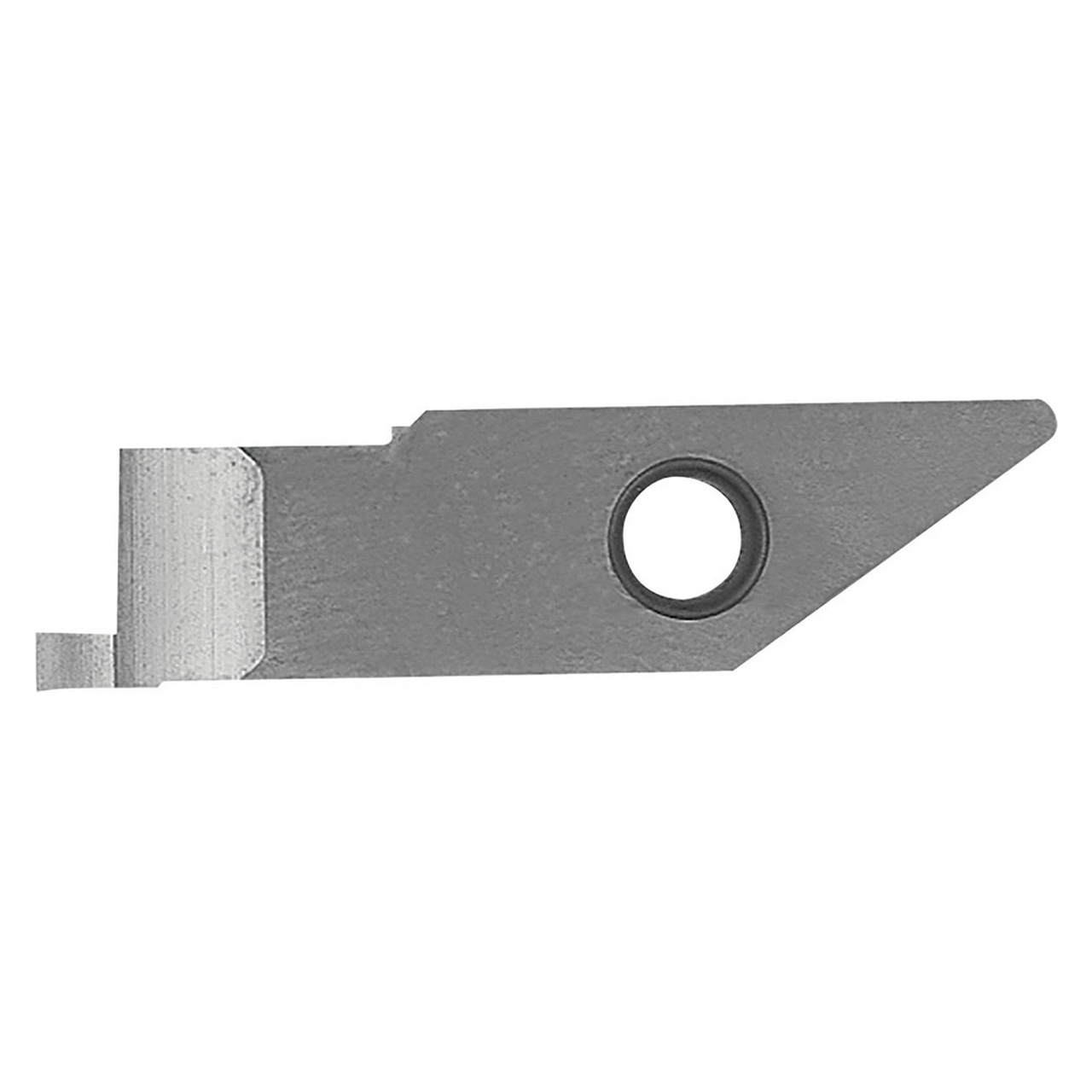

- Uncoated carbide KW10 grade swiss IQ bars provide efficient small diameter face grooving of cast iron
- 8mm Minimum face groove diameter
- Compatible with S-SVNR sleeves
Product Specifications
| EDP Number | TWE07172 |
| Max Depth of Cut (Decimal Inch) | 0.0787" |
| Max Depth of Cut (mm) | 2.00mm |
| Cutting Width (Decimal Inch) | 0.0787" |
| Cutting Width (mm) | 2.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0787" |
| Cutting Width Minimum (mm) | 2.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0787" |
| Cutting Width Maximum (mm) | 2.00mm |
| Minimum Face Groove Diameter (Decimal Inch) | 0.3150'' |
| Minimum Face Groove Diameter (mm) | 8.00mm |
| Shank Height (Decimal Inch) | 0.1535" |
| Shank Height (mm) | 3.90mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Usable Length (Decimal Inch) | 0.3937" |
| Usable Length (mm) | 10.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Face Grooving |
| Coating Process | Uncoated |
| Grooving Type | Internal Face Grooving |
| Hand | Right Hand |
| Insert Grade | KW10 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Cast Iron (K) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
VNFG
Series:
VNFG;Hand of Holder=Right-Hand"
