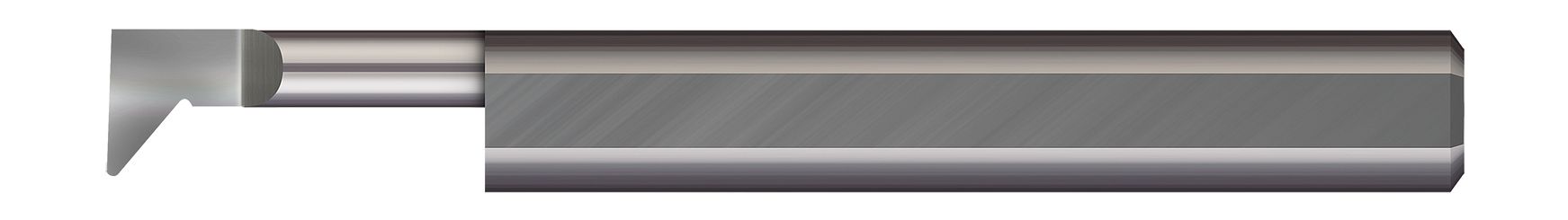

Micro 100 PR2-100300X | 0.1100" Minimum Bore Diameter x 0.300" Maximum Bore Depth x 0.002" Radius 1/8" Shank x 1-1/2" OAL AlTiN Coated Carbide Boring Bar

$30.00 $28.62
(You save $1.38)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
10233291
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
PR2-100300X

This Micro 100 solid carbide Radial Profiling Tool is also an excellent choice for fine finishing, and can even be used in thread relief applications.

  • Designed for radial profiling
  • Excellent choice for fine finishing
  • Can be used in thread relief applications
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1100" (2.8 mm)
Hand Direction Right Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.300"
Projection (Inch) 0.0350"
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) 0.0375"
Corner Radius (Inch) 0.002"
Neck Diameter (Inch) 0.0650"
Overall Length (Inch) 1.50" (1-1/2)
