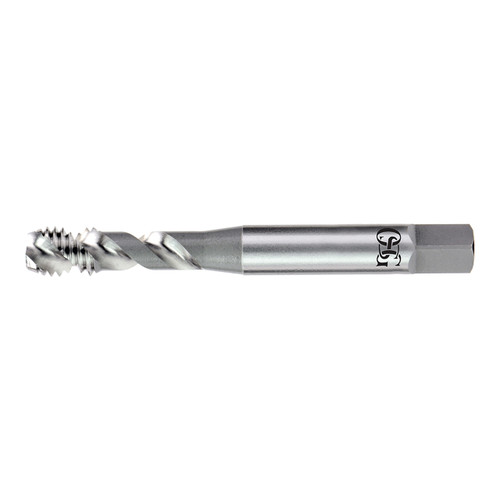

HY-PRO AL STI Taps High Performance Spiral Flute STI Tap for Aluminum
| Manufacturer Part Number | 1303901100 |
| Chamfer Length (Decimal Inch) | 0.104" |
| Major Diameter (Decimal Inch) | 0.375" |
| Neck Length (Decimal Inch) | 1.712" |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 3.161" |
| Shank Diameter (Decimal Inch) | 0.323" |
| Square Length (Decimal Inch) | 0.406" |
| Square Width (Decimal Inch) | 0.242" |
| Maximum Tap Drill Size (Decimal Inch) | 0.391" |
| Minimum Tap Drill Size (Decimal Inch) | 0.384" |
| Thread Length (Decimal Inch) | 0.625" |
| Thread Size (Inch) | 3/8" |
| Coating | Bright |
| Material | HSSE |
| Helix Direction | Right Hand |
| Helix Angle (Degree) | 50 Degree |
| Series | 13039 Series |
| Product Type | Spiral Flute STI Tap |
