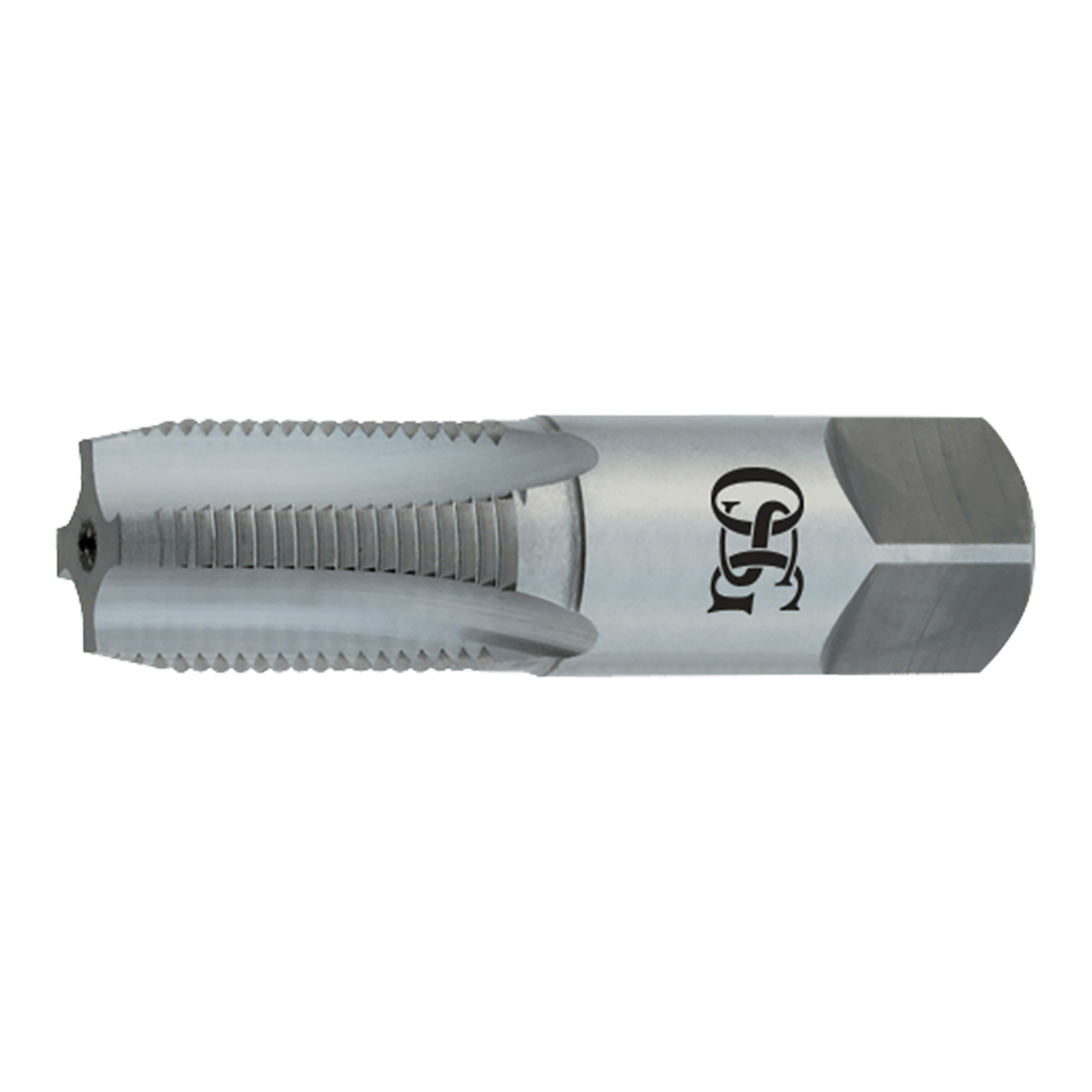

OSG 1330701 | 1" - 11 Thread Size x 1.125" Shank x 1.752" Thread Length x 3.752" OAL NPS 5 Flute Right Hand Steam Oxide Coated HSS 109 Standard Pipe Tap

$308.52 $138.83
(You save $169.69)
Brand:
OSG
Number of Flutes:
5
Material:
HSS
Finish/Coating:
Steam Oxide
Thread Size (Inch):
1"
interval quantity:
1
SKU:
17997774
UPC:
Weight:
0.91 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
OSG 1330701 | 1" - 11 Thread Size x 1.125" Shank x 1.752" Thread Length x 3.752" OAL NPS 5 Flute Right Hand Steam Oxide Coated HSS 109 Standard Pipe Tap

General Purpose parallel thread pipe taps provide exceptional value.

Features & Benefits:

  • HSS material: Increased wear resistance
  • Bright or Steam Oxide surface treatment: S/O increases mechanical lubricity
  • NPS & NPSF: For standard and dry seal straight pipe thread applications

Product Specifications
Manufacturer Part Number1330701
Cutting DirectionRight Hand
List NameGENERAL PURPOSE-NPS/NPSF
Major Diameter (Decimal Inch)1.000"
Number of Flutes5
Overall Length (Decimal Inch)3.752"
Shank Diameter (Decimal Inch)1.125"
Square Length (Decimal Inch)0.813"
Square Width (Decimal Inch)0.843"
MaterialHSS
CoatingSteam Oxide
Tap Drill Size Minimum (Decimal Inch)1.156"
Thread Length (Decimal Inch)1.752"
Thread Size (Inch)1"
Thread TypeNPS
Thread Per Inch (TPI)11 TPI
Series109
Product TypeStandard Pipe Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
