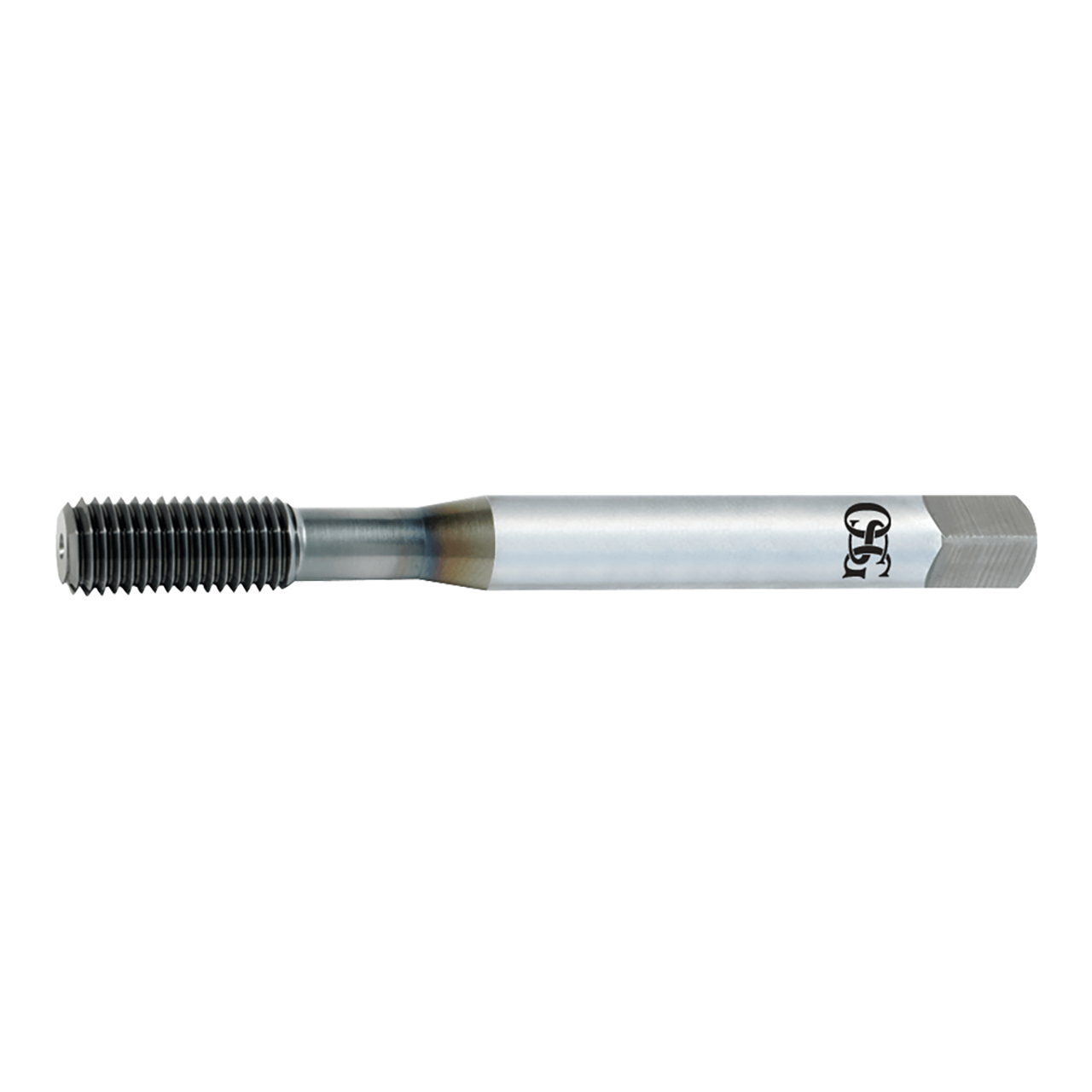

EXOTAP NRT Taps Performance Form Taps for Materials < 32Rc.
| Manufacturer Part Number | 1415003008 |
| Chamfer Length (Decimal Inch) | 0.074" |
| Chamfer Type | Bottom (1.5P) |
| Cutting Direction | Right Hand |
| List Name | VP-NRT |
| Major Diameter (mm) | 8.00mm |
| Neck Length (mm) | 28.60mm |
| Overall Length (mm) | 69.10mm |
| Pitch (mm) | 1.25mm |
| Shank Diameter (mm) | 8.08mm |
| Square Length (mm) | 9.53mm |
| Square Width (mm) | 6.05mm |
| Material | VC-10 |
| Coating | V |
| Tap Drill Size Maximum (mm) | 7.49mm |
| Tap Drill Size Minimum (mm) | 7.36mm |
| Thread Length (mm) | 15.00mm |
| Thread Limit | D5 |
| Thread Size | M8 |
| Thread Type | M |
| Series | 14150 |
| Product Type | Thread Forming Tap |
