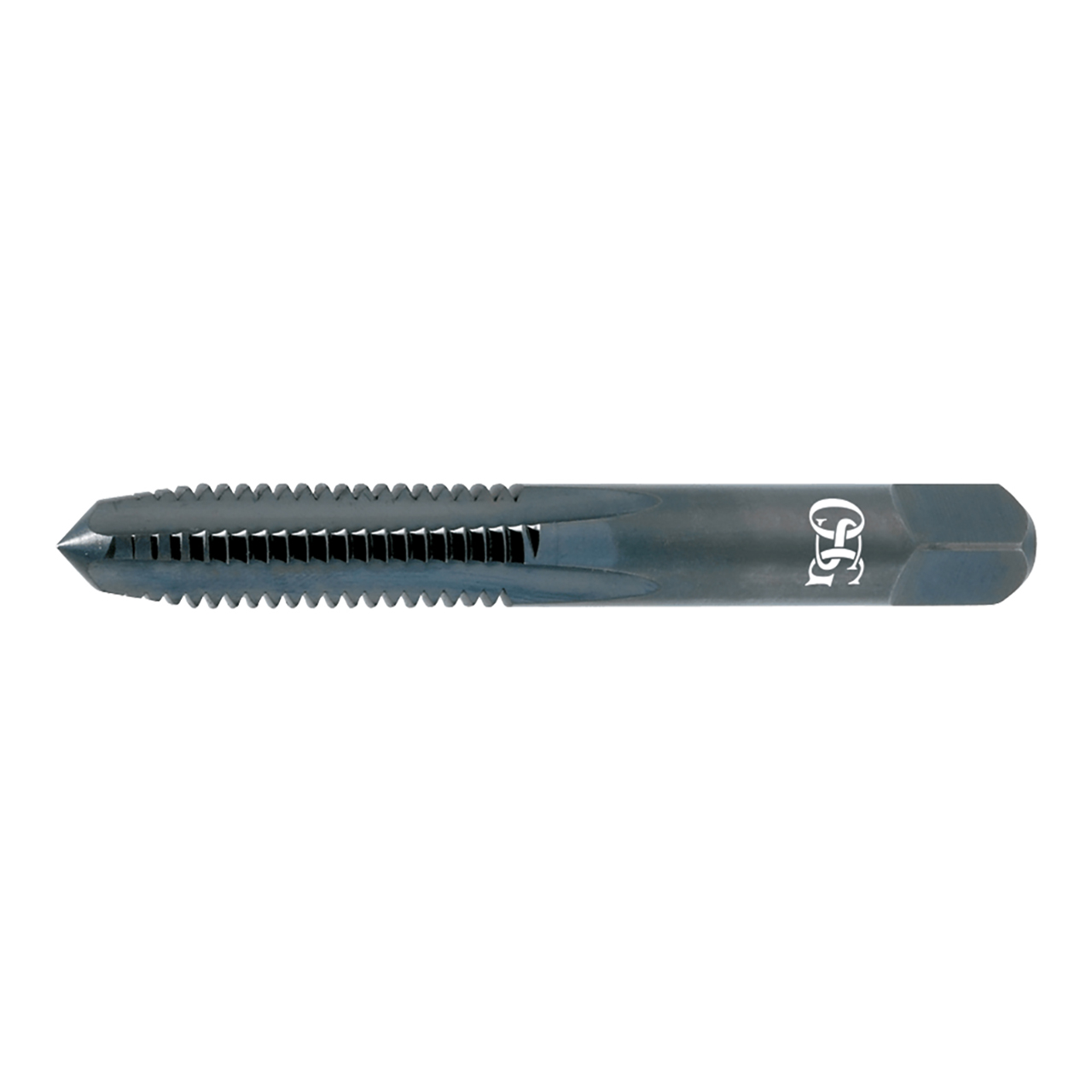

OSG 1608507 | M M10.00x1.50mm Thread Size x 9.68mm Shank x 22.50mm Length x 74.60mm OAL Plug (4P) Chamfer D6 4 Flute Nitride / Steam Oxide Coated HSS 141C Straight Flute Tap

OSG 1608507 | M M10.00x1.50mm Thread Size x 9.68mm Shank x 22.50mm Length x 74.60mm OAL Plug (4P) Chamfer D6 4 Flute Nitride / Steam Oxide Coated HSS 141C Straight Flute Tap

SKU: 18000907 Weight: 0.08 LBS Minimum Purchase: 1 unit
UPC:
$38.73 $17.43
(You save $21.30)
Shipping: Calculated at Checkout

About This Item

GENERAL PURPOSE Taps Straight Flute Hand Taps for Cast Iron


Product Specifications
Manufacturer Part Number1608507
Chamfer Length (Decimal Inch)0.236"
Major Diameter (mm)10.00mm
Neck Length (mm)35.10mm
Number of Flutes4
Overall Length (mm)74.60mm
Pitch (mm)1.50mm
Shank Diameter (mm)9.68mm
Square Length (mm)11.11mm
Square Width (mm)7.26mm
Maximum Tap Drill Size (mm)8.68mm
Minimum Tap Drill Size (mm)8.38mm
Thread Length (mm)22.50mm
Thread SizeM10
CoatingNitride / Steam Oxide
MaterialHSS
Series141C Series
Product TypeStraight Flute Tap
