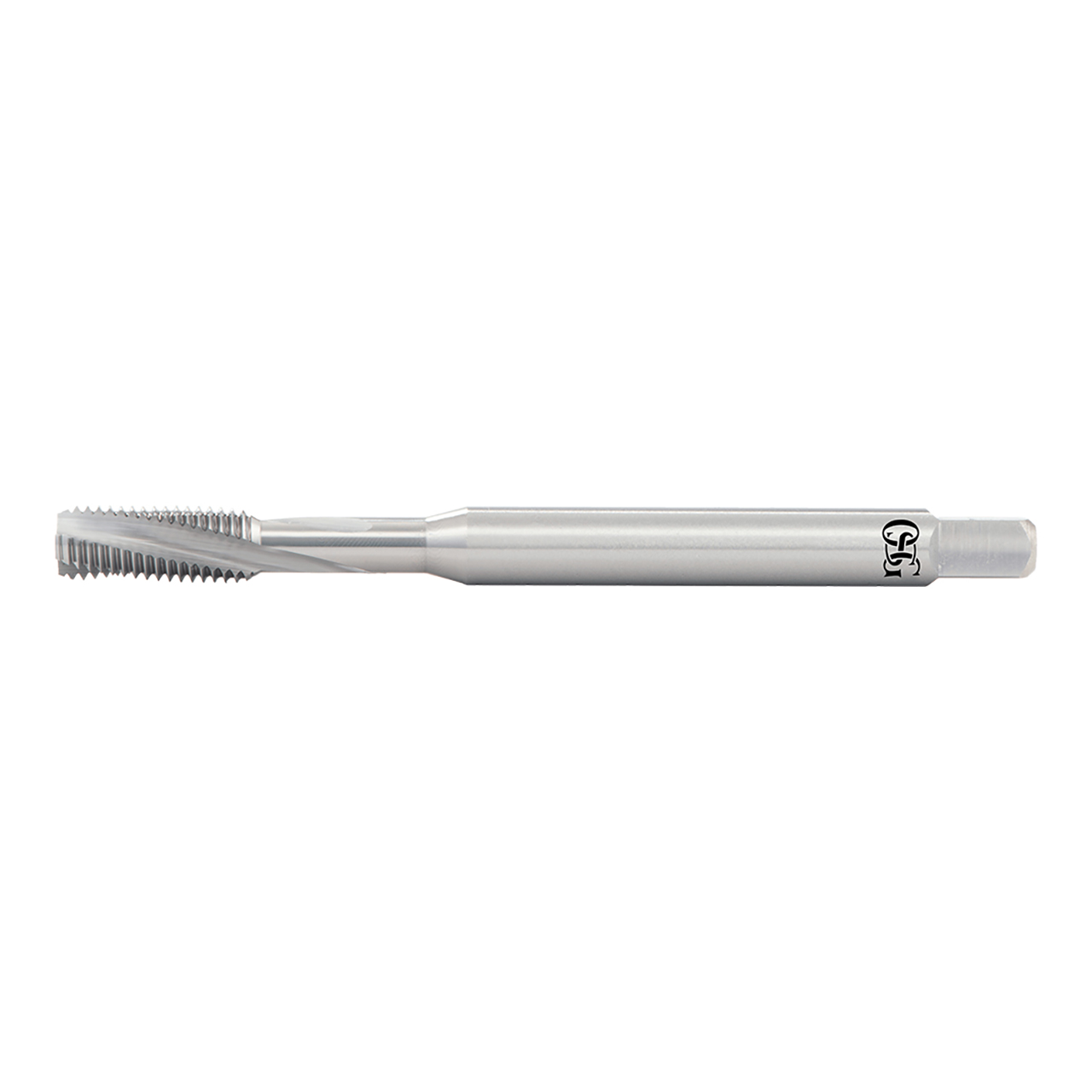

OSG 1660001100 | A BRAND M12 x 1.75mm Thread Size x 21.00mm Thread Length M D6 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Bright Coated Carbide 16600 Spiral Flute Tap

$421.51 $392.00
(You save $29.51)
Brand:
OSG
Flute Direction:
Right Hand
Number of Flutes:
3
Overall Length (mm):
110.00mm
Material:
Carbide
Finish/Coating:
Bright
Thread Limit:
D6
interval quantity:
1
SKU:
18002101
UPC:
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
OSG 1660001100 | A BRAND M12 x 1.75mm Thread Size x 21.00mm Thread Length M D6 Modified Bottom (2.5P) Chamfer Type 3 Flute Right Hand Bright Coated Carbide 16600 Spiral Flute Tap

A Brand A-CSF is an Advanced Performance Carbide Coolant-Through Taps for Cast Iron and Aluminum Alloy.

Features & Benefits:

  • Larger Oil Hole Design: Excellent coolant flow
  • Bright finish: Greater performance in non-ferrous materials
  • Ultra-Fine Grain Carbide: For high wear resistance and toughness

Product Specifications
Manufacturer Part Number1660001100
Chamfer Length (Decimal Inch)0.172"
Chamfer TypeModified Bottom (2.5P)
Coolant ThroughYes
Cutting DirectionRight Hand
Helix Angle (Degree)15 Degree
Helix DirectionRight Hand
List NameA-CSF
Major Diameter (mm)12.00mm
Number of Flutes3
Overall Length (mm)110.00mm
Pitch (mm)1.75mm
Shank Diameter (mm)9.32mm
Square Length (mm)11.11mm
Square Width (mm)6.99mm
MaterialCarbide
CoatingBright
Tap Drill Size Maximum (mm)10.44mm
Tap Drill Size Minimum (mm)10.11mm
Thread Length (mm)21.00mm
Thread LimitD6
Thread SizeM12
Thread TypeM
Series16600
Product TypeSpiral Flute Tab
