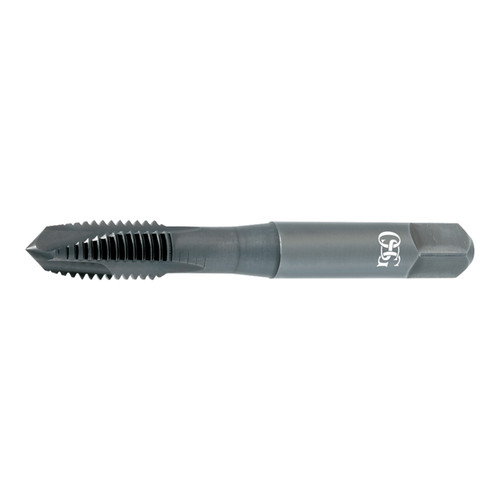

EXOTAP VC-10 is the premium solution for tapping helicoil (STI) threads in difficult to machine materials.
Features & Benefits:
| Manufacturer Part Number | 31400101 |
| Chamfer Length (Decimal Inch) | 0.104" |
| Chamfer Type | Plug (5P) |
| Cutting Direction | Right Hand |
| List Name | VC-10 POT STI |
| Major Diameter (Decimal Inch) | 0.099" |
| Neck Length (Decimal Inch) | 0.681" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 1.941" |
| Shank Diameter (Decimal Inch) | 0.141" |
| Square Length (Decimal Inch) | 0.188" |
| Square Width (Decimal Inch) | 0.110" |
| Material | VC-10 |
| Coating | Steam Oxide |
| Tap Drill Size Maximum (Decimal Inch) | 0.110" |
| Tap Drill Size Minimum (Decimal Inch) | 0.104" |
| Thread Length (Decimal Inch) | 0.346" |
| Thread Limit | H2 |
| Thread Size | No. 3 |
| Thread Size (Number) | #3 |
| Thread Type | UNC STI |
| Thread Per Inch (TPI) | 48 TPI |
| Series | 314 |
| Product Type | Spiral Point STI Tap |
