Parlec C40-18SF315-9 | 3/16" Hole Diameter x 3.15" Projection CAT40 0.39" Nose Diameter 25,000 RPM Shrink Fit Tool Holder & Adapter

$253.92
Ships:
From Partner Facility
Brand:
Parlec
Taper Size:
CAT40
Hole Diameter (Inch):
3/16"
Projection (Decimal Inch):
3.15"
Nose Diameter (Decimal Inch):
0.39"
Through Coolant:
No
Ships:
From Partner Facility
SKU:
55011150
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping

Features

  • Our heavy-duty shrinkfit holders deliver the required rigidity and clamping force for heavy chip loads and high metal removal rates.
  • Critical dimensions match popular industry standards.
  • Coolant supplied directly to the cutting zone drastically improves tool life and chip evacuation.
  • Extreme concentricity, 3 Microns.
  • Balanced up to 25,000 rpm.

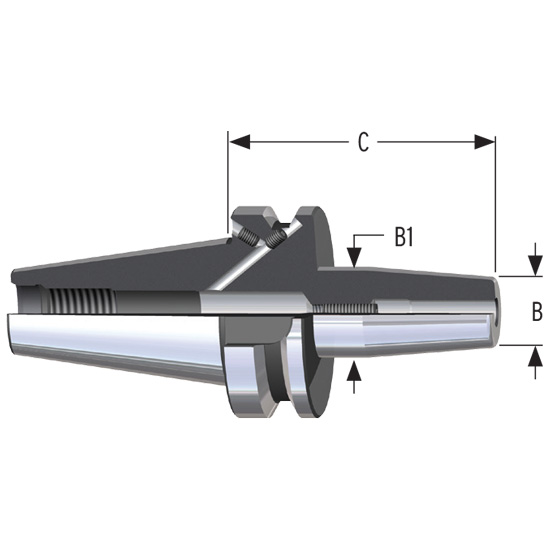

Product Specifications
Size (Hole Diameter) 3/16"
B (Nose Diameter) 0.39"
B1 0.72"
C (Projection) 3.15"
Style 2
Taper Size CAT40
Coolant Through (Yes/No) No
Weight (lbs) 0.01
