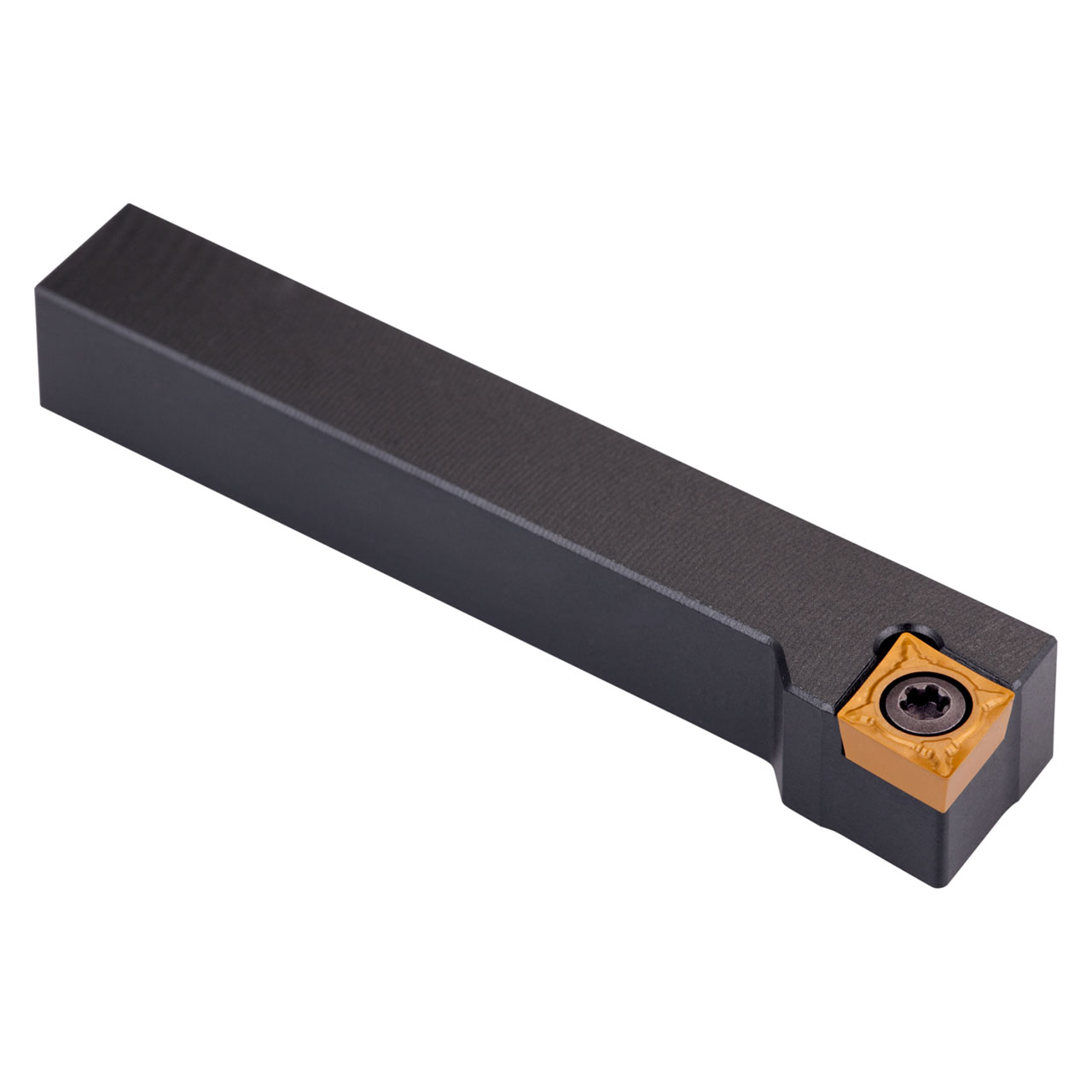

Screw clamp turning tool for holding a 80° rhombus positive insert with an inscribed circle diameter of 3/8'', 5/32'' thick (ANSI designation CC.. 32.5. ), left hand 95° side and end cutting with off-set shank, 5/8'' tool height x 5/8'' width x 4'' long for chamfering, taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
EDP Number | 6788653 |
Functional Height (Inch) | 0.625" |
Functional Width (Inch) | 0.75" |
Maximum Axial Groove Outside Diameter (mm) | |
Shank Height (Inch) | 0.625" |
Shank Width (Inch) | |
Functional Length (Inch) | 4" |
Head Length (Inch) | 0.63" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6250"
Shank Width (mm):
15.88mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6250"
Shank Height (mm):
15.88mm
