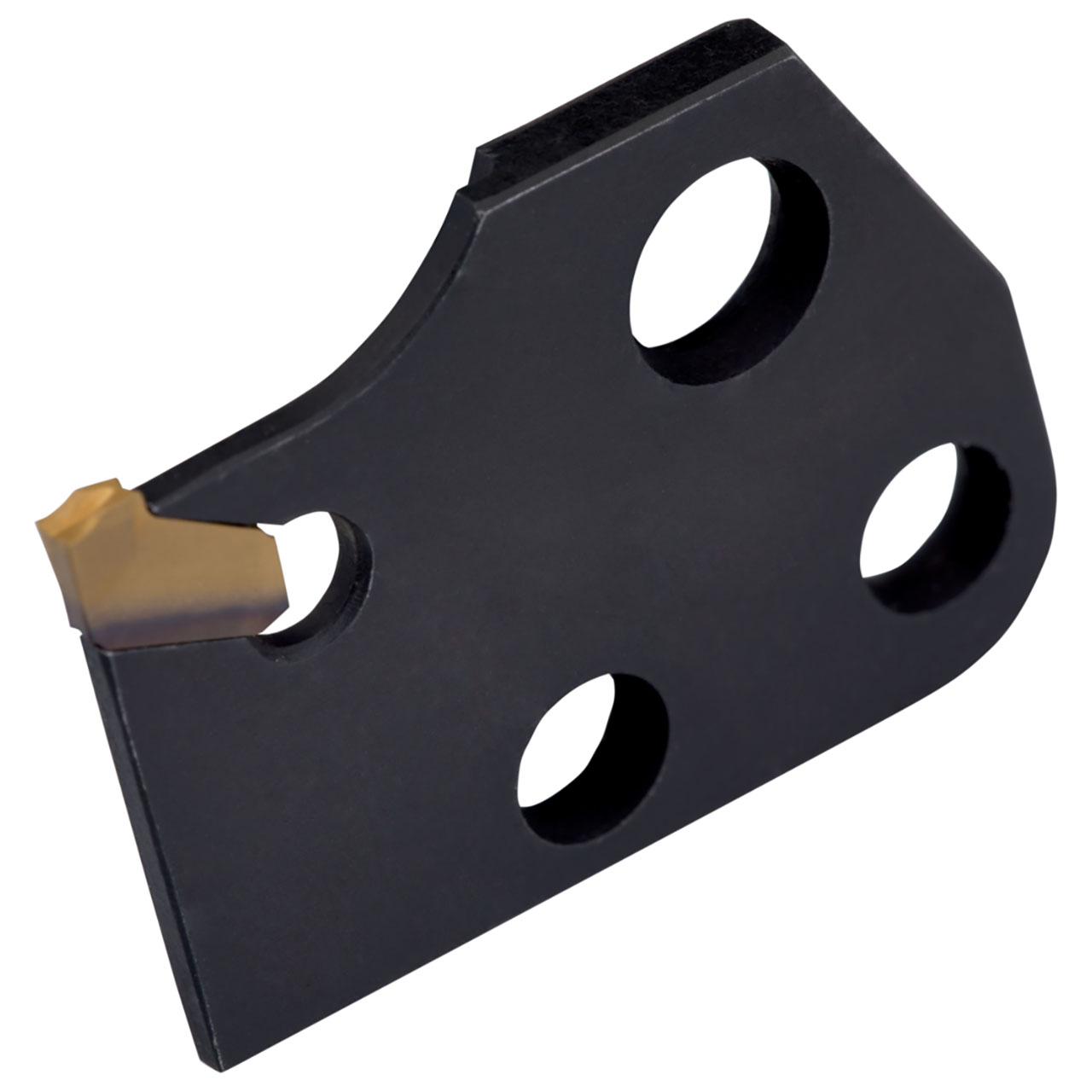

Spring clamp parting and grooving tool blade for holding a single ended insert with 1.5-1.6 mm cutting width (designation LFMX 1.5-. / LFMX 1.6-. ), tool style assembly with MS-EN.. (KMP)(S), right handed with insert parallel to the shank for a maximum grooving depth of 15 mm, for shallow and deep radial grooving, parting-off and tube parting-off.
Product Specifications
| EDP Number | 6757899 |
| Functional Height (mm) | 24 mm |
| Functional Height (Inch) | 0.945" |
| Cutting Width (Inch) | 0.059" |
| Cutting Width (mm) | 1.5 mm |
| Max Cutting Depth (mm) | 15 mm |
| Max Cutting Depth (Inch) | 0.591" |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 29 mm |
| Shank Height (Inch) | 1.142" |
| Functional Length (mm) | 40 mm |
| Functional Length (Inch) | 1.575" |
| Clamping Type Code | System X |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Direction:
Right Hand
interval quantity:
1
