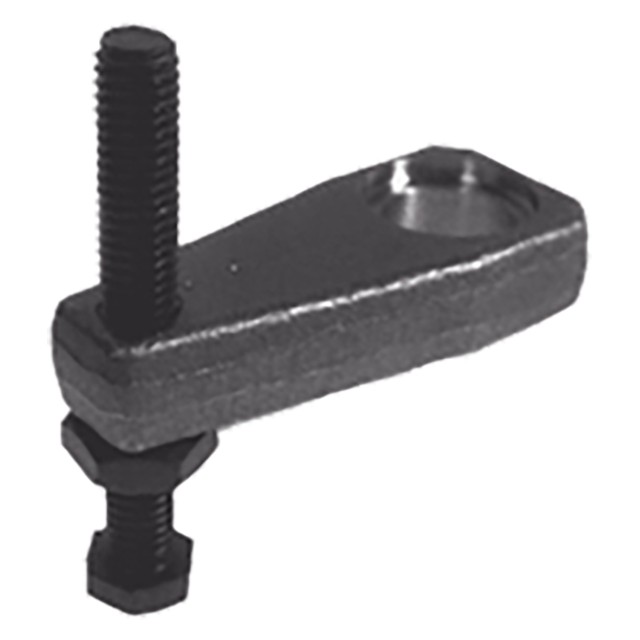

Roemheld Standard Clamping Arms
3000 to 7250 psi max. Standard Clamping Arms are compact yet provide considerable reach. These forged steel arms are available in four sizes, to fit five different Swing Clamp series, with a choice of USA or metric contact-bolt threads. An adjustable contact bolt is furnished.
Optional Untapped Version
Mounting
Mount arm on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with Swing Clamp.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Arm | Forged 4142 alloy steel | - | Black Oxide | Yes | Yes |
| Contact Bolt | Steel, Grade 8 | - | Black Oxide | Yes | Yes |
Parts Specification
| Clampsize | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G Thread (mm) | H (mm) | Weight (lbs) |
| 6 Series | 5.51 | 1.10 | 2.36 | 1.102 | 3.74 | 1.18 | M16 | 3.11 | 4.4 lbs. |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Roemheld
Thread:
M16
interval quantity:
1
