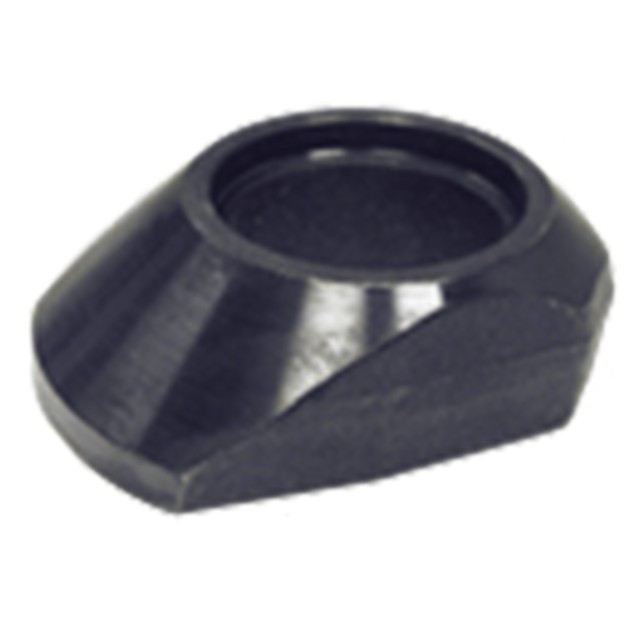

Short Clamping Arms allow operating pressures up to 7250 psi. Please note, these arms have a very limited reach, so they cannot be used with all Swing-Clamp body styles.
Mount arm on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with swing clamp.
| Material | Heat Treat | Finish | DFARS | RoHS |
| 4142 Alloy Steel | - | - | Yes | Yes |
| Clamp Size | A | B | C | D | E | Weight (lbs) |
| 2 & 3 series | 1.61 | 0.630 | 1.26 | 0.24 | 0.98 | 0.2 lbs. |
