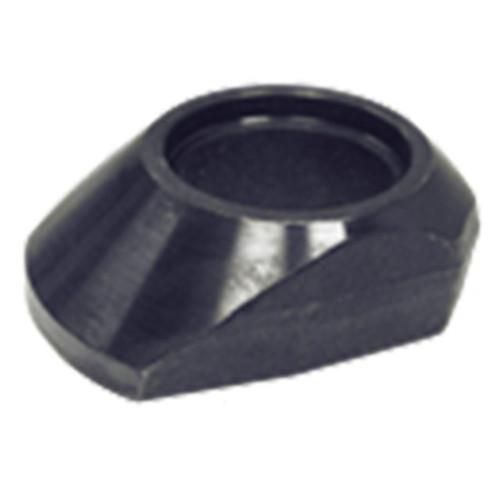

Compact, medium-length clamping arm that allows operating pressures up to 5000 psi. This arm provides a low profile and is also ideal for clamping in horizontal slots.
Mount arm on the tapered piston rod at desired orientation, then fasten with the piston-rod nut included with swing clamp.
| Material | Heat Treat | Finish | DFARS | RoHS |
| Forged 4142 Alloy Steel | - | - | Yes | Yes |
| Clampsize | A | B | C | D | E | F | G | H | I | Weight(lbs) |
| 5 Series | 2.99 | 1.10 | 1.81 | 0.98 | 1.97 | 0.91 | 0.886 | 0.75 | 0.28 | 0.7 lbs. |
